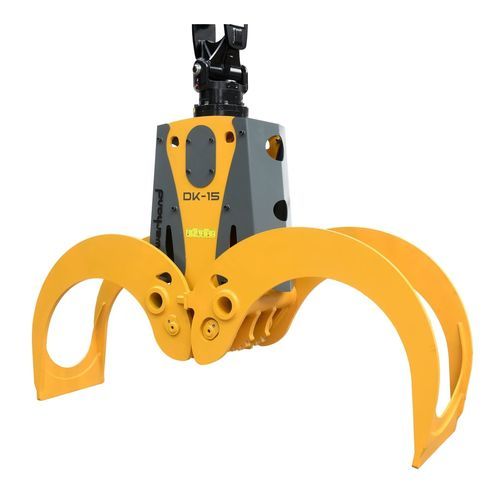

Forestry log grapple DK series

for loadersfor excavatorshandling

Overview
Massive-capacity log-carrying grapple designed for attachment to high-capacity material handlers and sawmill operations. The Powerhand DK series is the highest-capacity model in the Powerhand sawmill range and is used by many of Europe’s largest sawmills. Its intelligent leg design provides the dexterity to pinch a single log or gather large bundles.

Capacity Range
Capacity ranges from 1.3m² to 2.1m² across available models.

Key benefits

• The Perfect Load Legs guide logs up the legs to avoid hollow pockets in the load and reduce the risk of logs slipping from the centre of the pile, improving stability and load consistency.
• Built for high-capacity handling Vertical arrangement of hydraulic cylinders enables efficient penetration into log stacks; wear-resistant leg structures and a reinforced headstock provide durability for continuous sawmill use.

Applications
Suitable for high-capacity material handlers and sawmill log yards; available in multiple sizes and configurations to match throughput and handler specifications.

Technical specifications

• Models: DK13, DK15, DK17, DK21
• Capacity: DK13 1.3m2; DK15 1.5m2; DK17 1.7m2; DK21 2.1m2
• Weight (Excluding Rotator): DK13 1838kg; DK15 1880kg; DK17 1885kg; DK21 2005kg
• Jaw Opening (A): DK13 2579mm; DK15 2726mm; DK17 2904mm; DK21 3202mm
• Overall Opening (B): DK13 2911mm; DK15 3074mm; DK17 3237mm; DK21 3608mm
• Open Height (C): DK13 2109mm; DK15 2151mm; DK17 2201mm; DK21 2288mm
• Tip to Tip Height (D): DK13 2758mm; DK15 2846mm; DK17 2947mm; DK21 3123mm
• Min Gripping Diameter (E): DK13 Ø110mm; DK15 Ø110mm; DK17 Ø143mm; DK21 Ø151mm
• Max Gripping Diameter (Tip to Tip) (F): DK13 Ø1096mm; DK15 Ø1177mm; DK17 Ø1267mm; DK21 Ø1441mm
• Clearance (G): DK13 545mm; DK15 587mm; DK17 637mm; DK21 724mm
• Overall Width: 830mm (all models)
• Width at Tips: 789mm (all models)
