Forestry log grapple SG series

for excavatorshandling

Product overview

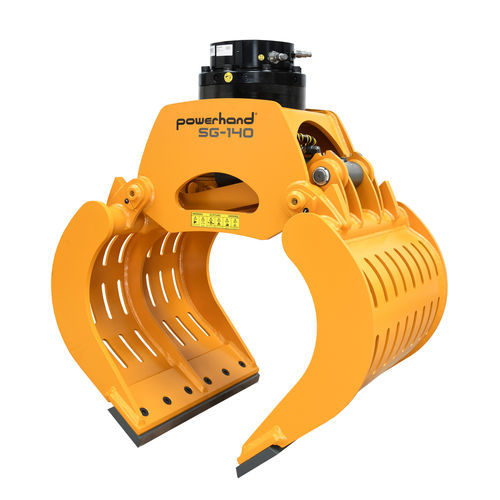

The Powerhand SG grapple is a multipurpose heavy-duty sorting grapple designed for excavators used in materials handling and sorting across industrial applications.

Key features

• Multipurpose heavy-duty design optimised for materials handling operations
• Fast-acting geometry for rapid cycle times and improved operating efficiency
• Large-bore hydraulic cylinders for increased clamping power
• Constructed from high-strength materials to reduce downtime
• Grapple legs open beyond vertical to increase opening span — ideal for scraping down walls and bins
• Machined top plate for direct integration of rotation units (Indexator XR Series) or S-Series tilt rotator brackets
• Available in capacities from 280 to 750 litres for excavators from 6 to 30 tonnes

Specifications (summary)
Models: SG80, SG140, SG160, SG200
Excavator size ranges: SG80 = 6–10 tonne; SG140 = 10–16 tonne; SG160 = 14–20 tonne; SG200 = 18–30 tonne
Capacities: SG80 = 280 L; SG140 = 350 L; SG160 = 500 L; SG200 = 750 L

Applications & integration
Designed for materials handling and sorting tasks on excavators where fast cycle times, powerful clamping and robust construction are required.
The machined top plate permits direct mounting of Indexator XR Series rotators and compatibility with S-Series tilt rotator brackets for easy integration.

Technical specifications

• Models: SG80, SG140, SG160, SG200
• Excavator size ranges: SG80 = 6–10 tonne; SG140 = 10–16 tonne; SG160 = 14–20 tonne; SG200 = 18–30 tonne
• Weights: SG80 = 390 kg; SG140 = 565 kg; SG160 = 755 kg; SG200 = 955 kg
• Opening (A): SG80 = 1700 mm; SG140 = 1917 mm; SG160 = 2100 mm; SG200 = 2300 mm
• Max Opening (B): SG80 = 1760 mm; SG140 = 1980 mm; SG160 = 2165 mm; SG200 = 2370 mm
• Open Height (C): SG80 = 740 mm; SG140 = 795 mm; SG160 = 909 mm; SG200 = 1025 mm
• Tip to Tip Height (D): SG80 = 1010 mm; SG140 = 1077 mm; SG160 = 1196 mm; SG200 = 1345 mm
• Clearance (E): SG80 = 340 mm; SG140 = 370 mm; SG160 = 438 mm; SG200 = 510 mm
• Width at Tips (F): SG80 = 700 mm; SG140 = 800 mm; SG160 = 950 mm; SG200 = 1100 mm
• Capacities: SG80 = 280 litres; SG140 = 350 litres; SG160 = 500 litres; SG200 = 750 litres
• Fast-acting geometry and large-bore hydraulic cylinders for speed and power
• Machined top plate compatible with Indexator XR Series rotators and S-Series tilt rotator brackets
