Saw log grapple CRANGS

forestryfor cranes

Short description

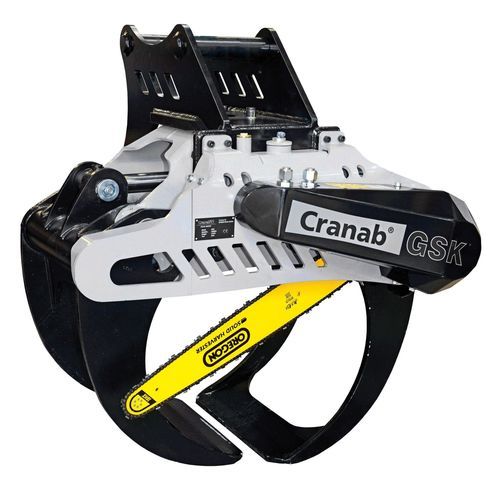

Cranab Grapple Saw is mountable onto most grapples in the Cranab and Powerhand ranges and is suitable for different saw bar lengths to cut logs up to 600 mm.

Full description
The GSK Saw Cassette is a grapple-mounted saw unit designed for integration with most Cranab and Powerhand grapples. It accepts various bar lengths to handle logs up to 600 mm diameter. The cassette design provides efficient operation with a low hydraulic power requirement. Chain tensioning is automatic and the unit uses 15 mm slot-type harvester bars. Chain lubrication is supplied from a separate oil tank with adjustable flow.

Features

• Self-contained saw cassette for grapple mounting
• Automatic chain tensioning with bar return
• Separate oil tank for chain lubrication with adjustable flow
• Quick-change bar and chain for fast maintenance
• Heavy-duty 18H bar and chain

Benefits

• Requires only a single hydraulic service (flow/return)
• Low power requirement: recommended 190–250 bar at 80–100 L/min
• Oil can be routed to the saw via Indexator GV124 or GV124-S rotators for simplified installation

Characteristics / Technical specifications

• Model: GSK Saw Cassette
• Product name: Cranab Grapple Saw
• SKU: CRANGS
• Compatibility: Mountable on most Cranab and Powerhand grapples
• Cutting capacity: logs up to 600 mm
• Bar type: 15 mm slot-type harvester bars
• Bar & chain: heavy-duty 18H bar and chain
• Chain tensioning: automatic with bar return
• Lubrication: separate oil tank with adjustable flow
• Hydraulics: single hydraulic service (flow/return); recommended operating pressure 190–250 bar at 80–100 L/min
• Rotator compatibility: can be oiled via Indexator GV124 / GV124-S rotators
• Quick maintenance: quick-change bar and chain
• Categories: Grapples, Timber Handling
