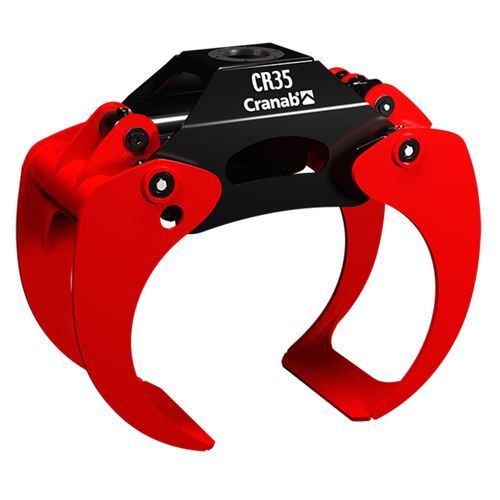

Forestry log grapple CRANCR

for excavatorsfor craneshandling

Short description
Grapple for handling round timber and logs; available in seven sizes for installation on cranes, excavators and forwarders.

Full description
The Cranab CR Series grapples are engineered for handling round timber and logs. Manufactured from extra high-strength steel, each model includes hardened steel expander pivot pins to ensure extended service life. The series provides an optimized roll-in and bundling geometry and a wide gripping area, covering seven sizes (CR19, CR23, CR26, CR35, CR40, CR45, CR55) suitable for small to large machines and timber trucks.

Benefits

• Designed specifically for round timber handling
• Optimized roll-in and bundling geometry for stable loads
• Wide opening range and high gripping capacity across sizes

Specifications

• SKU: CRANCR; Manufacturer: Cranab; Series: CR Series (CR19, CR23, CR26, CR35, CR40, CR45, CR55); Material: Extra high-strength steel; Pivot pins: Hardened steel expander pivot pins; Intended use: Handling round timber and logs; suitable for cranes, timber trucks, forwarders and excavators
• CR19 — Max working pressure: 190 bar; Weight: 100 kg; Gripping area: 0.19 m3; Max jaw opening: 1290 mm; Min grip diameter: 88 mm; Jaw width: 362 mm; Fully open height: 690 mm; Fully closed height: 772 mm; Max load: 2000 kg
• CR23 — Max working pressure: 210 bar; Weight: 105 kg; Gripping area: 0.22 m3; Max jaw opening: 1284 mm; Min grip diameter: 94 mm; Jaw width: 362 mm; Fully open height: 726 mm; Fully closed height: 800 mm; Max load: 2000 kg
• CR26 — Max working pressure: 250 bar; Weight: 190 kg; Gripping area: 0.26 m3; Max jaw opening: 1500 mm; Min grip diameter: 94 mm; Jaw width: 458 mm; Fully open height: 793 mm; Fully closed height: 893 mm; Max load: 3500 kg
• CR35 — Max working pressure: 250 bar; Weight: 245 kg; Gripping area: 0.32 m3; Max jaw opening: 1818 mm; Min grip diameter: 130 mm; Jaw width: 503 mm; Fully open height: 803 mm; Fully closed height: 976 mm; Max load: 4000 kg
• CR40 — Max working pressure: 250 bar; Weight: 315 kg; Gripping area: 0.40 m3; Max jaw opening: 1976 mm; Min grip diameter: 136 mm; Jaw width: 539 mm; Fully open height: 897 mm; Fully closed height: 1073 mm; Max load: 4000 kg
• CR45 — Max working pressure: 250 bar; Weight: 330 kg; Gripping area: 0.44 m3; Max jaw opening: 1973 mm; Min grip diameter: 110 mm; Jaw width: 535 mm; Fully open height: 966 mm; Fully closed height: 1130 mm; Max load: 4000 kg
• CR55 — Max working pressure: 250 bar; Weight: 410 kg; Gripping area: 0.55 m3; Max jaw opening: 2446 mm; Min grip diameter: 152 mm; Jaw width: 539 mm; Fully open height: 975 mm; Fully closed height: 1247 mm; Max load: 4000 kg
