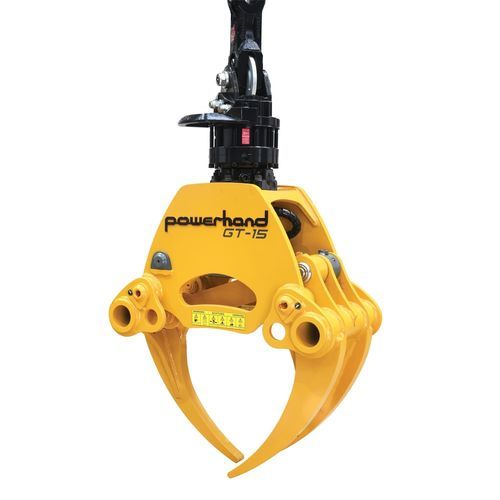

Forestry log grapple GT series

for loadershandling

Product Overview
Designed for precise single-log handling, the Powerhand GT log grapple features narrow, finger-like tines that penetrate stacked material to pick individual logs. Its fast leg action maintains continuous log-line throughput, making it suitable for sawmills and log sorting lines. Capacity options: 0.15 m² and 0.20 m².

Benefits

• Finger-like tines — Penetrate the log pile to pick a single log with reduced interference from adjacent logs. The GT Series leg geometry is straighter and narrower than traditional curved legs, minimising jamming and improving single-log pick accuracy.

Datasheet
Datasheet available as a PDF (product datasheet provided by manufacturer).

Technical specifications

• SKU: GTSERIES
• Capacity: GT15 - 0.15 m²; GT20 - 0.20 m²
• Weight (Excluding Rotator): GT15 - 220 kg; GT20 - 240 kg
• Jaw Opening (A): GT15 - 1010 mm; GT20 - 970 mm
• Overall Opening (B): GT15 - 1100 mm; GT20 - 1100 mm
• Open Height (C): GT15 - 854 mm; GT20 - 910 mm
• Tip to Tip Height (D): GT15 - 860 mm; GT20 - 915 mm
• Min Gripping Diameter (E): GT15 - Ø56 mm; GT20 - Ø56 mm
• Max Gripping Diameter (Tip to Tip) (F): GT15 - Ø377 mm; GT20 - Ø440 mm
• Overall Width: GT15 - 416 mm; GT20 - 416 mm
• Width at Tips: GT15 - 244 mm; GT20 - 244 mm
