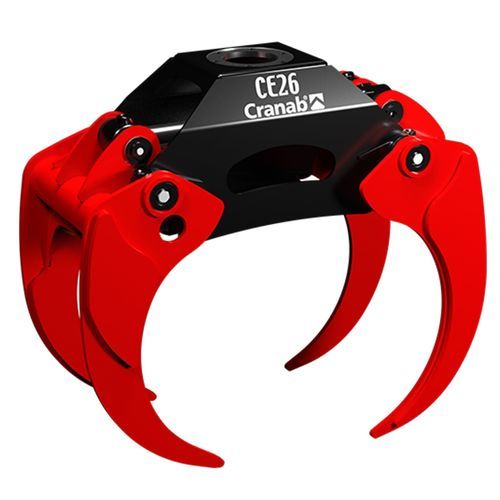

Forestry log grapple CRANCE

for craneshandling

Overview
Cranab Energy Grapples are designed for forestry work and are optimised for forwarders and truck cranes as well as chippers. They handle tree branches, brushwood and other biomass materials and are suitable for feeding mechanised chipping and shredding machines.

Key features

• Optimised for use with forwarders, truck cranes and chippers
• Designed to handle tree branches, brushwood and biomass
• Reinforced, heavy‑duty penetrating tines for improved penetration and retention
• Available in three sizes to match different log‑handling requirements
• Tip forces specified for gripping performance at max opening and tip‑to‑tip

Specifications table
Grapple Type | Gripping Area (m2) | Width Max Grapple Opening (mm) | Width Min. Grapple Opening (mm) | Depth Grapple Side (mm) | Height Max Open Grapple (mm) | Height Tip to Tip (mm) | Tip force at max grapple width (kN) | Tip force, tip to tip (kN) | Weight (kg) | Max permitted load (kg) | MPa
CE23 | 0.21 | 1300 | 93.5 | 376 | 703 | 791 | 7.7 | 9.8 | 120 | 2000 | 21
CE26 | 0.23 | 1524 | 98 | 476 | 759 | 882 | 12.4 | 14.4 | 205 | 3500 | 25
CE35 | 0.29 | 1836 | 121 | 523 | 758 | 957 | 16.6 | 18.5 | 265 | 4000 | 25

Additional information
Grapples are fitted with reinforced, heavy‑duty penetrating tines to improve grip and material penetration. Three sizes (CE23, CE26, CE35) cover a range of handling capacities for forwarders and truck‑mounted cranes.

Technical specifications

• CE23 — Gripping area: 0.21 m2; Max opening: 1300 mm; Min opening: 93.5 mm; Depth side: 376 mm; Height max open: 703 mm; Height tip‑to‑tip: 791 mm; Tip force at max width: 7.7 kN; Tip‑to‑tip force: 9.8 kN; Weight: 120 kg; Max permitted load: 2000 kg; MPa: 21
• CE26 — Gripping area: 0.23 m2; Max opening: 1524 mm; Min opening: 98 mm; Depth side: 476 mm; Height max open: 759 mm; Height tip‑to‑tip: 882 mm; Tip force at max width: 12.4 kN; Tip‑to‑tip force: 14.4 kN; Weight: 205 kg; Max permitted load: 3500 kg; MPa: 25
• CE35 — Gripping area: 0.29 m2; Max opening: 1836 mm; Min opening: 121 mm; Depth side: 523 mm; Height max open: 758 mm; Height tip‑to‑tip: 957 mm; Tip force at max width: 16.6 kN; Tip‑to‑tip force: 18.5 kN; Weight: 265 kg; Max permitted load: 4000 kg; MPa: 25
