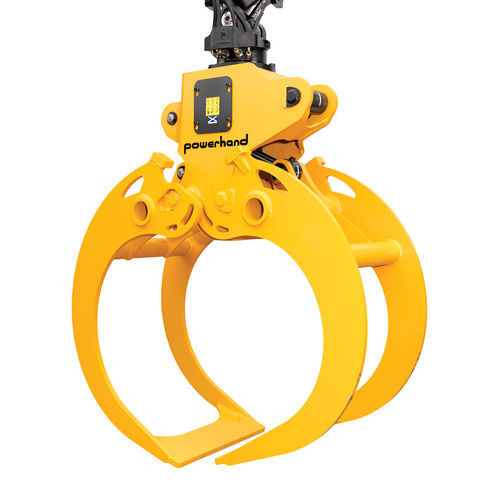

Forestry log grapple VK series

for loadersfor excavatorsfor cranes

Short description
High-capacity, low-height log carrying grapple for excavators, material handlers and loader cranes.

Full description
Powerhand VK timber grapples are designed for efficient log handling and loading where a large capacity combined with a compact overall height is required. The low-profile design improves base machine stability while increasing reach and stacking height. Suitable for sawmills, loading yards and wood-processing sites. Capacity options range from 1.0 m² to 1.5 m² across VK10, VK13 and VK15 models.

Benefits

• The perfect load Log-hugging leg geometry allows logs to roll up the legs, minimising hollow pockets and preventing logs from sliding out of the load centre.
• Stack it high Compact overall height and horizontal ram configuration reduce machine lift height, enabling higher stacking and safer transport with the boom held lower.

Specifications table
Dimensions | VK10 | VK13 | VK15
Capacity | 1.0 m² | 1.3 m² | 1.5 m²
Weight (Excluding Rotator) | 1333 kg | 1409 kg | 1493 kg
Jaw Opening (A) | 2387 mm | 2562 mm | 2736 mm
Overall Opening (B) | 2625 mm | 2905 mm | 3107 mm
Open Height (C) | 1322 mm | 1472 mm | 1495 mm
Tip to Tip Height (D) | 1953 mm | 2105 mm | 2191 mm
Min Gripping Diameter (E) | Ø205 mm | Ø169 mm | Ø209 mm
Max Gripping Diameter (Tip to Tip) (F) | Ø958 mm | Ø1107 mm | Ø1191 mm
Overall Width | 834 mm | 834 mm | 834 mm
Width at Tips | 804 mm | 804 mm | 804 mm

Technical characteristics / specifications

• Brand: Powerhand
• Series / Model: VK series (VK10, VK13, VK15)
• SKU: VKSERIES
• Application: For excavators, material handlers and loader cranes; suited to sawmills and loading yards for log handling and loading
• Capacity (VK10): 1.0 m²
• Capacity (VK13): 1.3 m²
• Capacity (VK15): 1.5 m²
• Weight excluding rotator (VK10): 1333 kg
• Weight excluding rotator (VK13): 1409 kg
• Weight excluding rotator (VK15): 1493 kg
• Jaw opening A (VK10 / VK13 / VK15): 2387 mm / 2562 mm / 2736 mm
• Overall opening B (VK10 / VK13 / VK15): 2625 mm / 2905 mm / 3107 mm
• Open height C (VK10 / VK13 / VK15): 1322 mm / 1472 mm / 1495 mm
• Tip to tip height D (VK10 / VK13 / VK15): 1953 mm / 2105 mm / 2191 mm
• Minimum gripping diameter E (VK10 / VK13 / VK15): Ø205 mm / Ø169 mm / Ø209 mm
• Maximum gripping diameter F (tip to tip) (VK10 / VK13 / VK15): Ø958 mm / Ø1107 mm / Ø1191 mm
• Overall width: 834 mm (all models)
• Width at tips: 804 mm (all models)
• Design features: low overall height via horizontal ram to improve stacking height and machine stability; log-hugging leg design to minimise hollow pockets in loads
