Forestry log grapple GB series

for cranesfor excavatorshandling

Product overview

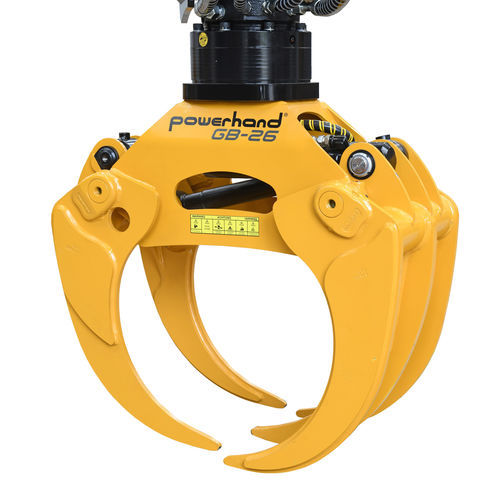

The Powerhand GB Series biomass grapple is a high-strength, lightweight grapple designed for handling timber, branches, brushwood, scrap wood and recycling materials. It is offered for rigid excavator mount (suitable for excavators from 6 to 14 tonnes depending on model) and as a swing-link mount option for excavators and timber cranes. Available in two capacities (0.26 m² and 0.35 m²) with five Hardox tines, the GB series provides an efficient, low-weight solution for biomass handling.

Key features

• High-strength, low-weight construction
• Specifically designed for biomass: timber, branches, brushwood, scrap wood and recycling materials
• Available for rigid excavator mount and swing-link mount for timber cranes and excavators
• Five Hardox tines for durable penetration and secure grip
• Two capacity options: 0.26 m² (GB26) and 0.35 m² (GB35)

Specification table
Dimensions: , GB26, GB35
Capacity: , 0.26 m², 0.35 m²
Weight: , 250 kg, 315 kg
Opening (A): , 1524 mm, 1836 mm
Minimum Gripping Diameter (B): , 98 mm, 121 mm
Width (C): , 476 mm, 523 mm
Height Open (D): , 759 mm, 758 mm
Height Tip to Tip (E): , 882 mm, 957 mm
Excavator Size: , 6–12 Tonnes, 10–14 Tonnes

Technical specifications

• Model series: GB series
• Capacities: 0.26 m² (GB26) and 0.35 m² (GB35)
• Weight: 250 kg (GB26), 315 kg (GB35)
• Opening (A): 1524 mm (GB26), 1836 mm (GB35)
• Minimum gripping diameter (B): 98 mm (GB26), 121 mm (GB35)
• Width (C): 476 mm (GB26), 523 mm (GB35)
• Height open (D): 759 mm (GB26), 758 mm (GB35)
• Height tip to tip (E): 882 mm (GB26), 957 mm (GB35)
• Recommended excavator size: 6–12 tonnes (GB26), 10–14 tonnes (GB35)
• Tines: five Hardox tines
• Mounting: rigid excavator mount and swing-link mount options
