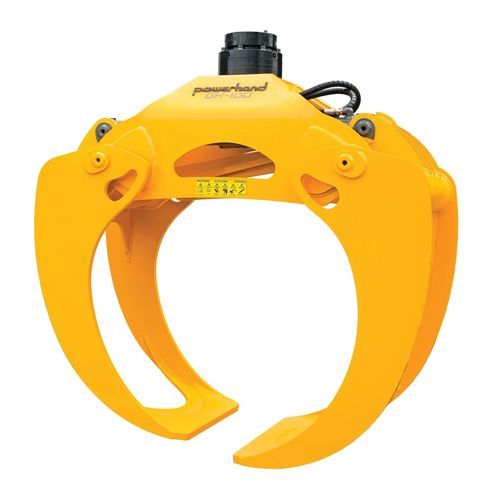

Forestry log grapple GH series

for excavatorsfor cranesfor loaders

Product overview
Trusted and used by many of Europe’s largest sawmills, the GH timber grapple by Powerhand is engineered for log handling and loading on excavators, materials handlers and loader cranes in sawmills and loading yards.

Features

• Low-profile log handling grapple designed for improved machine stability and reach
• Constructed for long service life and reduced downtime
• Compact overall height for greater stability and access
• Hardened chrome-plated pivot pins
• Accessible grease points for straightforward maintenance
• Guarded hydraulic cylinders for component protection
• Capacity range by model: 0.6 m² to 1.0 m²

Benefits

• Consistent loads: Powerhand’s log-hugging leg geometry helps logs roll into position and reduces hollow pockets, minimizing risk of slippage from the centre of the load.

Technical table
Item — GH60 | GH80 | GH100
Capacity — 0.6 m² | 0.8 m² | 1.0 m²
Weight — 807 kg | 1063 kg | 1193 kg
Opening (A) — 2422 mm | 2845 mm | 3258 mm
Max Opening (B) — 2601 mm | 3010 mm | 3388 mm
Open Height (C) — 1149 mm | 1198 mm | 1188 mm
Tip to Tip Height (D) — 1379 mm | 1539 mm | 1644 mm
Min Gripping Diameter (E) — ∅161 mm | ∅184 mm | ∅262 mm
Clearance (F) — 592 mm | 596 mm | 555 mm
Overall Width (G) — 776 mm | 876 mm | 876 mm
Leg Tip Width (H) — 726 mm | 826 mm | 826 mm

Technical specifications

• Model series: GH series
• Intended applications: sawmill excavators, materials handlers and loader cranes; log handling and loading in sawmills and loading yards
• Design highlights: low profile for improved machine stability and reach; easy maintenance with hardened chrome-plated pivot pins, accessible grease points and guarded hydraulic cylinders
• Capacity (by model): GH60 = 0.6 m²; GH80 = 0.8 m²; GH100 = 1.0 m²
• Weight (by model): GH60 = 807 kg; GH80 = 1063 kg; GH100 = 1193 kg
• Opening (A) (by model): GH60 = 2422 mm; GH80 = 2845 mm; GH100 = 3258 mm
• Max Opening (B) (by model): GH60 = 2601 mm; GH80 = 3010 mm; GH100 = 3388 mm
• Open Height (C) (by model): GH60 = 1149 mm; GH80 = 1198 mm; GH100 = 1188 mm
• Tip to Tip Height (D) (by model): GH60 = 1379 mm; GH80 = 1539 mm; GH100 = 1644 mm
• Min Gripping Diameter (E) (by model): GH60 = ∅161 mm; GH80 = ∅184 mm; GH100 = ∅262 mm
• Clearance (F) (by model): GH60 = 592 mm; GH80 = 596 mm; GH100 = 555 mm
• Overall Width (G) (by model): GH60 = 776 mm; GH80 = 876 mm; GH100 = 876 mm
• Leg Tip Width (H) (by model): GH60 = 726 mm; GH80 = 826 mm; GH100 = 826 mm
