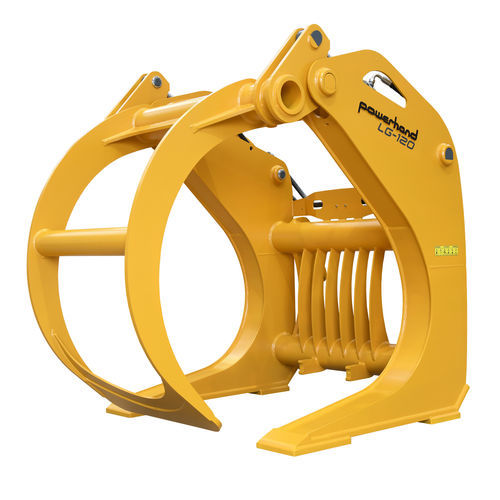

Forestry log grapple LG series

for loadershandling

Short description
Hard wearing, high capacity loader grab designed for wheeled loaders

Full description
Trusted by many of the largest timber sawmills in the UK and Europe, the Powerhand LG high capacity loader grab is designed to mount on wheeled loaders. The compact, robust rear frame maintains machine stability while carrying large timber volumes. Heat-treated wear parts extend service life and are designed for easy replacement to reduce downtime. Capacity range: 1.1 m² (LG50) to 3.0 m² (LG150).

Benefits

• A Perfect Fit The Powerhand LG series can be manufactured to your bin width and built at any width so the LG offers a tailored fit to your bins.
• All Inclusive The LG series can be configured to suit any base machine. Options include quick hitch or direct-mount rear frame to match the loader of your choice.
• Dexterity at its finest Optional moving inner leg enables single-log picking. The inner leg provides a fully enclosed load and prevents gaps where logs can fall out.

Powerhand LG Loader Grab - Specifications (table)
Dimensions | | LG50 | LG70 | LG90 | LG110 | LG120 | LG150
Capacity | | 1.1m2 | 1.4m2 | 1.7m2 | 2.0m2 | 2.4m2 | 3.0m2
Weight | | 1190kg | 1250kg | 1460kg | 2310kg | 2570kg | 2850kg
Tine Length (Quick Hitch Mount) (A) | | 1557mm | 1491mm | 1613mm | 1762mm | 1762mm | 2222mm
Jaw Opening (B) | | 1892mm | 1999mm | 2129mm | 2263mm | 2022mm | 3155mm
Pivot Point Height (C) | | 1420mm | 1470mm | 1550mm | 1780mm | 1992mm | 2172mm
Internal Length (Tip to Tip) (D) | | 1382mm | 1267mm | 1528mm | 1619mm | 1713mm | 1999mm
Min Gripping Diameter (E) | | Ø866mm | Ø801mm | Ø886mm | Ø973mm | Ø967mm | Ø1089mm
Overall Open Length (F) | | 2400mm | 2381mm | 2563mm | 2960mm | 3393mm | 3427mm
Span (G) | | 2036mm | 2171mm | 2299mm | 2553mm | 2547mm | 3336mm
Standard Width | | 1300mm | 1600mm | 1600mm | 1600mm | 1800mm | 1800mm

Additional information
Compact and strong rear frame for high machine stability while carrying large timber loads. Heat-treated wear parts for extended life and easy replacement to reduce downtime. Optional inner leg for single-log handling.

Technical specifications

• Series: LG series
• Capacity range: 1.1 m² (LG50) to 3.0 m² (LG150)
• Weights by model: LG50 1190kg; LG70 1250kg; LG90 1460kg; LG110 2310kg; LG120 2570kg; LG150 2850kg
• Tine lengths (Quick Hitch Mount) A: LG50 1557mm; LG70 1491mm; LG90 1613mm; LG110 1762mm; LG120 1762mm; LG150 2222mm
• Jaw opening B: LG50 1892mm; LG70 1999mm; LG90 2129mm; LG110 2263mm; LG120 2022mm; LG150 3155mm
• Pivot point height C: LG50 1420mm; LG70 1470mm; LG90 1550mm; LG110 1780mm; LG120 1992mm; LG150 2172mm
• Internal length (tip to tip) D: LG50 1382mm; LG70 1267mm; LG90 1528mm; LG110 1619mm; LG120 1713mm; LG150 1999mm
• Minimum gripping diameter E: LG50 Ø866mm; LG70 Ø801mm; LG90 Ø886mm; LG110 Ø973mm; LG120 Ø967mm; LG150 Ø1089mm
• Overall open length F: LG50 2400mm; LG70 2381mm; LG90 2563mm; LG110 2960mm; LG120 3393mm; LG150 3427mm
• Span G: LG50 2036mm; LG70 2171mm; LG90 2299mm; LG110 2553mm; LG120 2547mm; LG150 3336mm
• Standard widths: LG50 1300mm; LG70 1600mm; LG90 1600mm; LG110 1600mm; LG120 1800mm; LG150 1800mm
• Heat-treated wear parts for extended lifespan and reduced downtime
• Optional moving inner leg for single-log picking and improved load enclosure
