Forestry log grapple TERRAGRIP

for excavatorshandling

Product Overview

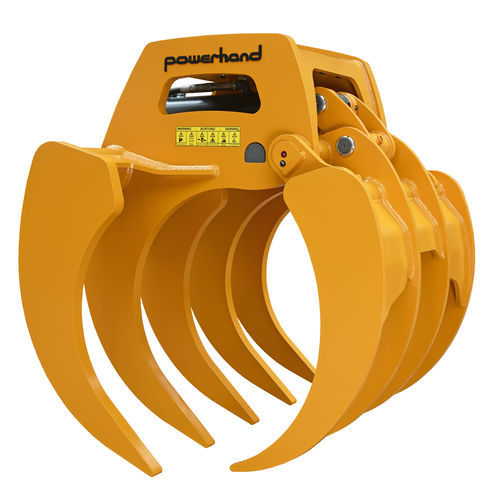

The Terragrip rake grapple from Powerhand is purpose-built for stump removal and brash handling on forestry sites. It combines a fixed leg that functions as a root ripper and ground rake with a moving leg that secures loads. The moving leg offers nearly 180° of movement to increase load capacity while maximising visibility of the fixed leg during operation. All grapple tines are manufactured from hardened steel for extended service life. The Terragrip can be fitted to an excavator quick hitch, mounted to a tilt rotator, or supplied with a heavy-duty rotation unit. It is designed for machines in the 14–25 tonne class.

Key Features

• Purpose-built for stump clearance and brash handling
• Fixed leg acting as root ripper and ground rake
• Moving leg with almost 180° travel for increased load capacity and improved visibility
• Hardened steel grapple tines for strength and longevity
• Configurable for excavator quick hitch, tilt rotator, or supplied with heavy-duty rotation unit
• Suitable for excavators 14–25 tonnes

Applications

• Stump removal and root ripping
• Raking and clearing brash on forestry sites
• Gripping and moving large timber and biomass

Technical specifications

• Model designation: Terragrip Grapple
• Capacity (m²): 0.42
• Weight (kg): 1030
• Length (mm) (A): 1764
• Max Opening (mm) (B): 1543
• Opening Angle (°) (C): 172
• Height (mm) (D): 1279
• Clearance (mm) (E): 832
• Minimum Gripping Diameter (mm) (F): 127
• Width (mm) (G): 1200
• Recommended Excavator Size (Tonnes): 14-25
