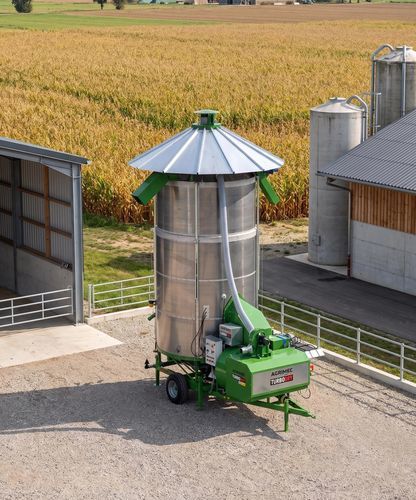

Grain dryer TURBODRY AS 2550

seedmobilewheeled

Overview

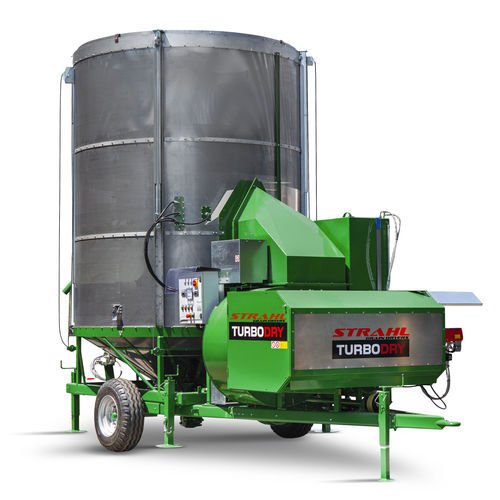

Designed for agricultural drying operations, the TURBODRY series are mobile direct‑flame grain dryers engineered for efficient drying, easy maintenance and simplified cleaning. Models vary by width, power and maximum capacity and can be configured with burner and drive options to match farm workflows.

Key benefits

• Thermal optimization: Heat is directed to the product to minimize losses and improve process energy efficiency.
• Temperature stability: Drying chamber lined with refractory material stabilizes hot‑air temperature for more complete combustion and controlled drying.
• Drying homogeneity: Continuous internal circulation of grain, seed or legumes ensures uniform moisture reduction and consistent product quality.
• Fast drying: Large heat‑exchange area between hot air and product shortens drying time without compromising quality.

Core components (visualizer items)

• Loading auger: Feeds product into the dryer bell.
• Central auger: Lifts and recirculates product into the drying zone and assists discharge.
• Swivel discharge: Allows gravity discharge or, on flat sites, motor‑driven auger discharge for steady flow.
• Burner: Heat source for drying; diesel burners standard, methane or LPG available on request.
• Fan: Draws ambient air through the preheated furnace and distributes it into the bell to lower product moisture uniformly.
• Expulsion cleaner: Removes impurities via drop‑expulsion separation at intake or output.
• Electrical panel (auto/manual): Centralized control of drying cycles in automatic or manual mode.
• Drive options (PTO and/or electric): Available PTO (cardan), electric or mixed drives depending on operational setup.
• Sensors: Temperature sensors for process monitoring and control.

Models (tables)
Width 2.25 m
Model | Capacity (m³) | PTO power HP (kW) | Electric power (kW) | Dimensional drawings
AS 400 | 8 | 30 (22) | 17 | Drawings available
AS 500 | 10 | 35 (26) | 17.5 | Drawings available

Width 2.55 m
Model | Capacity (m³) | PTO power HP (kW) | Electric power (kW) | Dimensional drawings
AS 600 | 11.5 | 40 (30) | 21 | Drawings available
AS 900 | 15 | 45 (34) | 25 | Drawings available
AS 1000 | 17 | 50 (37) | 27 | Drawings available
AS 1150 | 19 | 55 (41) | 31 | Drawings available

Width 3.2 m
Model | Capacity (m³) | PTO power HP (kW) | Electric power (kW) | Dimensional drawings
AS 1350 | 21 | 65 (49) | 37 | Drawings available
AS 1550 | 28.5 | 70 (52) | 39 | Drawings available
AS 1750 | 32 | 75 (56) | 42 | Drawings available

Width 4 m
Model | Capacity (m³) | PTO power HP (kW) | Electric power (kW) | Dimensional drawings
AS 2550 | 44 | 100 (75) | 54 | Drawings available
AS 2650 | 52 | 100 (75) | 55 | Drawings available
AS 3150 | 58 | 110 (82) | 57 | Drawings available
AS 3550 | 64 | 150 (112) | 85 | Drawings available
AS 3750 | 75 | 150 (112) | 85 | Drawings available

Notes on configuration

• Series models differ by width, capacity and power to suit a range of farm throughputs.
• Burner options: diesel standard; methane gas or LPG on request.
• Drive: PTO (cardan), electric or mixed available depending on site and tractor/electric supply.

Technical specifications

• Product family: TURBODRY series — mobile dryers for agricultural use.
• Drying method: Direct‑flame drying for concentrated heat transfer and reduced consumption.
• Thermal lining: Refractory lining for temperature stability and improved combustion.
• Material handling: Loading auger, central auger, swivel discharge; expulsion cleaner for impurity removal.
• Control: Electrical panel with automatic and manual modes.
• Sensors: Temperature sensors for process monitoring.
• Burner options: Diesel (standard); methane or LPG on request.
• Drive options: PTO, electric or mixed.
• Model range: capacities from 8 m³ (AS 400) to 75 m³ (AS 3750); PTO power 30–150 HP (22–112 kW); electric power 17–85 kW.
