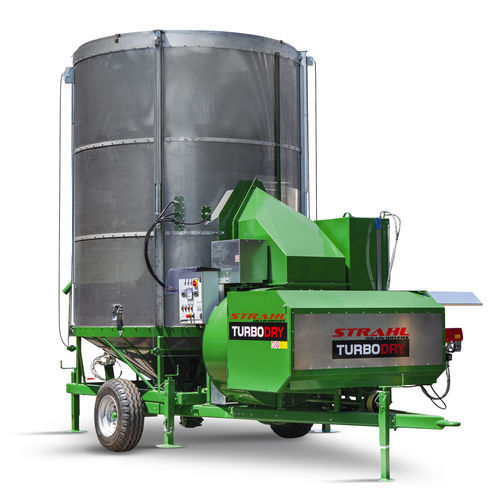

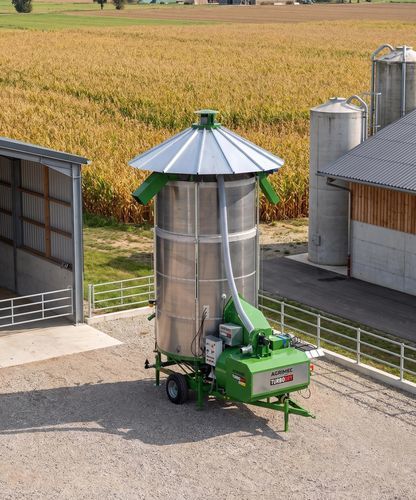

Grain dryer TURBODRY AS 3150

seedmobilewheeled

Overview
Born from detailed knowledge of agricultural requirements, TURBODRY dryers are mobile direct‑flame dryers engineered for efficient, serviceable drying of grain, legumes and seeds. Models within the TURBODRY Series vary by dimensions, drive options and maximum production capacity, and can be configured with specific construction variants to meet farm requirements.

Compact Efficiency - Key benefits

• Thermal optimization: All generated heat is directed onto the product to be dried, minimizing losses and improving process energy efficiency.
• Temperature stability: The drying chamber lined with refractory material stabilizes hot‑air temperature for more complete combustion and energy savings.
• Drying homogeneity: Continuous internal product movement ensures uniform drying to preserve product quality and storage properties.
• Fast drying: Large heat‑exchange surface between hot air and product enables rapid drying times without compromising quality.

Core components (visualizer)

• Loading auger: Loads the product into the dryer bell.
• Central auger: Transports product upward, reintroducing it into the drying area and assisting discharge of dried product.
• Swivel discharge: Allows gravity discharge or, where no slope is available, an electric motor auger ensures constant flow.
• Burner: Heat source for drying. Standard configuration includes diesel burners; methane or LPG burners available on request.
• Fan: Draws external air, channels it through the preheated furnace and sends it into the bell to reduce moisture uniformly.
• Expulsion cleaner: Removes impurities using a drop‑expulsion mechanism, separating unwanted fractions from input or output product.
• Electrical panel (automatic/manual): Centralized control of dryer operations in automatic or manual mode.
• Drive (PTO and/or electric): Mobile dryers available with PTO (cardan), electric or mixed drive depending on operational needs.
• Sensors: Temperature sensors measure and monitor product temperature during drying.

Models - Width 2.25 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5

Models - Width 2.55 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31

Models - Width 3.2 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42

Models - Width 4 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 2250 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Notes on customization and configuration
Direct‑flame drying is designed for high energy yield and reduced consumption. Models differ by size, power and maximum throughput and can be configured with construction variants to meet specific farm needs. Standard burners are diesel; methane or LPG burners available on request. Drive options include PTO, electric or mixed. Operation can be automatic or manual via the electrical panel. Temperature sensors available for monitoring.

Technical characteristics / specifications

• Product family: TURBODRY Series (mobile dryers for agricultural use)
• Drying method: Direct‑flame drying (high energy yield, reduced consumption)
• Typical fuels: Diesel standard; methane or LPG on request
• Operation: Electrical panel with automatic/manual modes
• Drive: PTO (cardan), electric or mixed drive options
• Sensors: Temperature sensors for product monitoring
• Design features: Drying chamber lined with refractory material for temperature stability; large heat‑exchange surface for fast drying; central auger and constant‑motion system for drying homogeneity
• Capacity range (by model): from 8 m³ (AS 400) up to 75 m³ (AS 3750)
• PTO power range: from 30 HP (22 kW) up to 150 HP (112 kW) depending on model
• Electric power range: from 17 kW up to 85 kW depending on model
• Available technical drawings: dimensional drawings referenced for the series (DISEGNI DIMENSIONALI)
