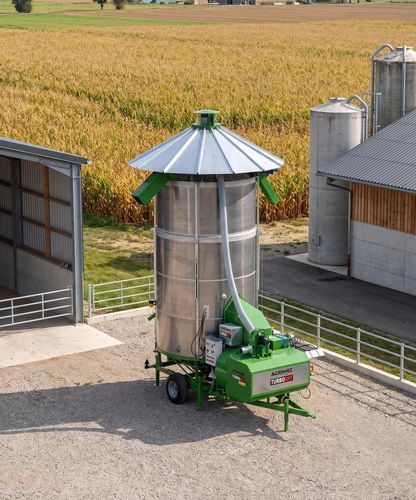

Grain dryer TURBODRY AS 1550

mobilewheeled

Product overview
Designed for agricultural use, the TURBODRY series are mobile grain dryers engineered for direct‑flame drying with configurable sizes and drives. Models cover capacities from 8 to 75 m³ and are adaptable to farm-specific workflows and layouts.

Key concept

• Direct‑flame drying — heat is applied directly to the product for high energy yield and lower consumption.
• Thermal optimization — refractory‑lined drying chamber stabilizes hot‑air temperature and improves combustion efficiency.
• Homogeneous drying — continuous product motion ensures uniform moisture reduction and product quality preservation.
• Rapid processing — large heat‑exchange surface enables fast drying times without degrading the product.

Main components (visualizer)

• Loading Auger — feeds the product into the dryer bell.
• Central Auger — lifts and recirculates the product through the drying zone and assists discharge.
• Swivel Discharge — discharge by gravity or by electric‑motor auger for constant flow.
• Burner — heat source; diesel burners standard, methane or LPG on request.
• Fan — draws external air through the preheated furnace into the bell for even moisture removal.
• Expulsion Cleaner — removes impurities via drop expulsion, separating unwanted fractions.
• Electrical Panel (automatic/manual) — centralized control of dryer operations.
• Drive (PTO and/or electric) — PTO (cardan), electric or mixed drive options for mobile units.
• Sensors — temperature sensors monitor product temperature during drying.

Models (technical table)
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42
AS 2250 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Compact Efficiency - Highlights

• Thermal optimization directs heat to the product to minimize losses.
• Refractory lining stabilizes temperature for efficient combustion.
• Continuous mixing delivers homogeneous drying and preserves quality.
• Large exchange surface for faster drying cycles.

Characteristics / Technical specifications

• Series name: TURBODRY
• Drying type: direct‑flame drying
• Typical fuels: diesel burners standard; methane or LPG on request
• Drive options: PTO (cardan), electric or mixed drive
• Control: electrical panel with automatic or manual modes
• Sensors: temperature sensors for process monitoring
• Model capacities: 8–75 m³ depending on model
• PTO power range: approx. 30 HP (22 kW) to 150 HP (112 kW)
• Electric power range: approx. 17 kW to 85 kW
• Construction: multiple width variants and configurable equipment to meet farm needs
