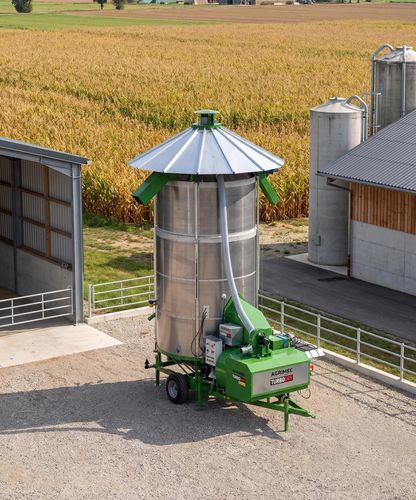

Grain dryer TURBODRY AS 1150

mobilewheeled

Product overview
Born from deep knowledge of agricultural needs, the TURBODRY series are mobile direct-flame grain dryers designed for efficient, fast and uniform drying. Models vary by width, capacity and drive options, and can be configured with different burner fuels and equipment to match farm workflows.

Key benefits

• Direct-flame drying concentrates heat on the product for high thermal efficiency and lower fuel consumption.
• Refractory-lined drying chamber stabilizes hot-air temperature for consistent combustion and energy savings.
• Continuous product movement ensures homogeneous drying and preserves grain quality.
• Large heat-exchange surface enables fast drying times without compromising quality.

Main components (visualizer)

• Loading auger — feeds product into the dryer bell.
• Central auger — conveys product upward and reintroduces it into the drying zone.
• Swivel discharge — allows gravity discharge or electric-auger discharge for constant flow.
• Burner — heat source; diesel burners standard, methane or LPG on request.
• Fan — draws air through the preheated furnace and distributes hot air into the bell.
• Expulsion cleaner — removes impurities via a drop-expulsion mechanism.
• Electrical panel (automatic/manual) — centralized control of dryer operations.
• Drive (PTO and/or electric) — PTO, electric or mixed drives available.
• Sensors — temperature sensors for process monitoring.

Models and technical data
Width 2.25 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5

Width 2.55 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31

Width 3.2 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42

Width 4 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 2250 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Technical specifications

• Drying method: direct flame; burner fuels: diesel standard, methane or LPG on request.
• Operation: automatic or manual control via centralized electrical panel.
• Drive options: PTO (cardan), electric or mixed for mobile models.
• Auxiliary systems: expulsion cleaner for impurity removal; temperature sensors for monitoring.
• Range capacities: 8 m³ (AS 400) to 75 m³ (AS 3750); PTO power from ~30 to 150 HP; electric power from 17 to 85 kW.
