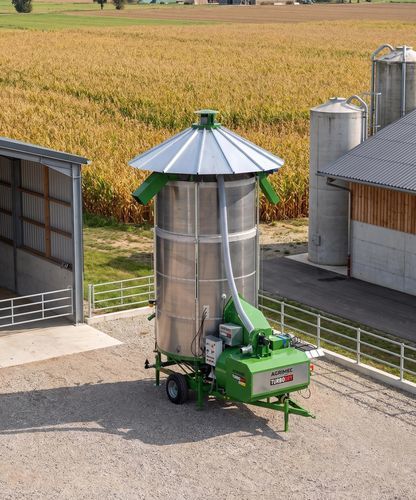

Grain dryer TURBODRY AS 1750

seedmobilewheeled

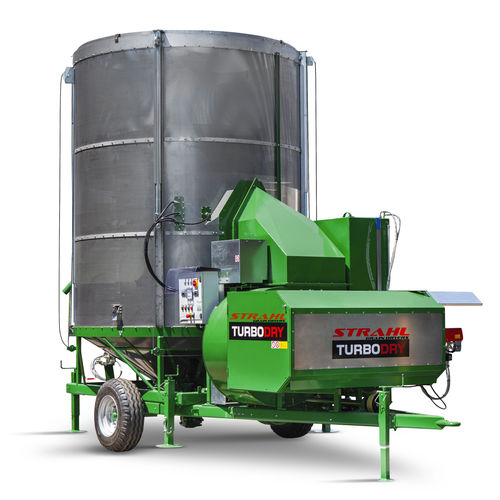

Product overview
Born from agricultural expertise, the TURBODRY series comprises mobile grain dryers engineered for direct‑flame drying. Models vary by size, drive and installed power to meet different farm production needs.

Key proposition
Direct‑flame drying for high energy yield and reduced fuel consumption. Each model is available in different widths and power configurations to suit specific operational requirements.

Compact efficiency

• Thermal optimization: Generated heat is channelled directly to the product to minimize losses and improve process energy efficiency.
• Temperature stability: Refractory‑lined drying chamber stabilizes hot air temperature for more complete combustion and energy savings.
• Drying homogeneity: Continuous internal movement of grain/seed ensures uniform drying and better product preservation.
• Fast drying: Large heat‑exchange surface between hot air and product enables rapid drying without compromising quality.

Main components (visualizer)

• Loading auger: Loads product into the dryer bell.
• Central auger: Lifts and redistributes product through the drying zone and assists discharge.
• Swivel discharge: Allows gravity discharge or, on level ground, an electric‑motor auger for continuous flow.
• Burner: Heat source; diesel burners standard, methane or LPG available on request.
• Fan: Draws ambient air through the preheated furnace and into the bell for uniform moisture reduction.
• Expulsion cleaner: Separates impurities using a drop expulsion mechanism.
• Electrical panel (automatic/manual): Centralized control of dryer functions.
• Drive: PTO (cardan), electric or mixed drive options for mobile models.
• Sensors: Temperature sensors monitor product temperature during drying.

Models and technical tables
Width 2.25 m
Model | Capacity (m³) | PTO power HP (kW) | Electric power (kW)
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5

Width 2.55 m
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31

Width 3.2 m
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42

Width 4 m
AS 2250 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Characteristics / technical specifications

• Series name: TURBODRY Series
• Drying type: Direct‑flame drying
• Design: Mobile configuration; refractory‑lined drying chamber for temperature stability
• Heat management: Thermal optimisation channels heat directly to the product
• Product handling: Loading and central augers ensure continuous movement and homogeneous drying
• Discharge options: Gravity or motorised auger (swivel discharge)
• Fuel / burner: Diesel standard; methane or LPG on request
• Air flow: Forced by fan through preheated furnace into the bell
• Cleaning: Expulsion cleaner to remove impurities
• Controls: Electrical panel for automatic or manual centralized management
• Drive options: PTO, electric or mixed for mobile models
• Sensors: Temperature sensors for process monitoring
• Available capacities: 8 m³ to 75 m³ according to model
