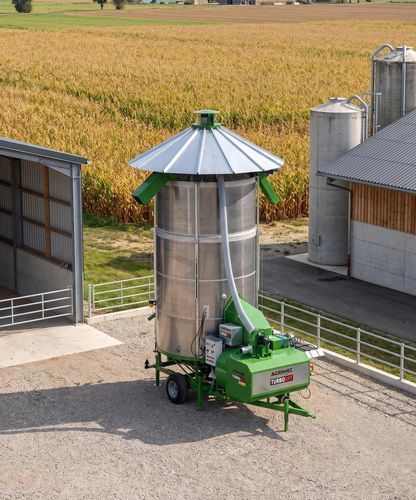

Grain dryer TURBODRY AS 1350

mobilewheeled

Overview
Born from agricultural expertise, the TURBODRY series comprises mobile direct‑flame grain dryers designed for straightforward maintenance and configurable to specific farm requirements.

Compact Efficiency

• Thermal optimization All generated heat is directed to the product to minimize losses and optimize energy efficiency.
• Temperature stability The refractory‑lined drying chamber stabilizes hot air temperature for more complete combustion and energy savings.
• Drying homogeneity Continuous internal product movement ensures uniform drying and improved preservation.
• Fast drying Large heat‑exchange surface between hot air and grain enables reduced drying times without compromising quality.

Core components

• Loading auger: Loads the product into the dryer bell.
• Central auger: Transports product upward and reintroduces it into the drying area, facilitating discharge.
• Swivel discharge: Enables gravity discharge or, without slope, electric‑motor auger discharge for constant flow.
• Burner: Heat source; standard diesel burners, methane or LPG on request.
• Fan: Draws external air through the preheated furnace into the bell to reduce moisture uniformly.
• Expulsion cleaner: Removes impurities by drop expulsion, separating unwanted fractions.
• Electrical panel (automatic/manual): Centralized control of dryer operations.
• Drive (PTO and/or electric): Available PTO, electric or mixed drive depending on operational needs.
• Sensors: Temperature sensors for monitoring product temperature during drying.

Models
Width 2.25 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5

Width 2.55 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31

Width 3.20 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42

Width 4 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
AS 2250 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Technical specifications

• Drying method: Direct‑flame drying for high energy yield and reduced consumption.
• Available capacities: 8 m³ (AS 400) to 75 m³ (AS 3750).
• PTO power range: 30 HP (22 kW) to 150 HP (112 kW).
• Electric power range: approx. 17 kW to 85 kW depending on model.
• Burner fuel: Diesel standard; methane or LPG on request.
• Drive options: PTO, electric or mixed.
• Control: Electrical panel with automatic or manual modes.
• Sensors: Temperature monitoring during drying.
• Model configurability: Multiple widths and power options to match farm requirements.
