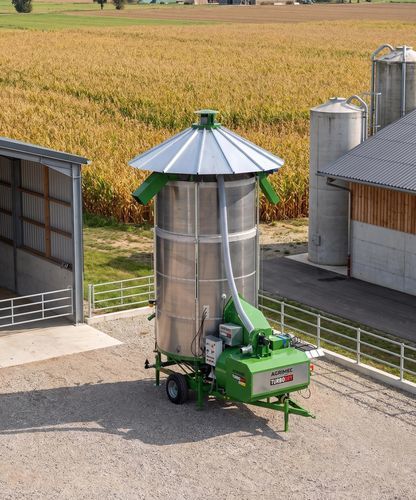

Grain dryer TURBODRY AS 500

seedmobilewheeled

Product overview
The TURBODRY series comprises mobile direct‑flame grain dryers designed for agricultural drying. Models differ by width, capacity and drive/equipment options and can be configured to fit specific farm requirements.

Compact efficiency

• Thermal optimization: Generated heat is directed onto the product to minimize losses and improve process energy use.
• Temperature stability: The drying chamber is lined with refractory material to stabilize hot‑air temperature and support complete combustion.
• Drying homogeneity: Continuous internal movement of grain, legumes or seeds ensures uniform drying and consistent storage properties.
• Fast drying: Large heat‑exchange surface between hot air and product enables short drying cycles without affecting product condition.

Core components

• Loading auger: Feeds product into the dryer bell.
• Central auger: Transports product upward, reintroducing it into the drying zone and assisting later discharge.
• Swivel discharge: Enables gravity discharge or, on flat surfaces, auger discharge driven by an electric motor for constant flow.
• Burner: Heat source for drying. Diesel burners standard; methane gas or LPG burners available on request.
• Fan: Draws external air, channels it through the preheated furnace and distributes hot air into the bell.
• Expulsion cleaner: Removes impurities via a drop‑expulsion mechanism to separate unwanted fractions.
• Electrical panel (automatic/manual): Centralized control of dryer operations in automatic or manual mode.
• Drive (PTO and/or electric): Mobile units available with PTO (cardan), electric or mixed drive.
• Sensors: Temperature sensors monitor product temperature during drying.

Available models — Width 2.25 m
AS 400 | Capacity: 8 m³ | PTO power: 30 HP (22 kW) | Electric power: 17 kW
AS 500 | Capacity: 10 m³ | PTO power: 35 HP (26 kW) | Electric power: 17.5 kW

Available models — Width 2.55 m
AS 600 | Capacity: 11.5 m³ | PTO power: 40 HP (30 kW) | Electric power: 21 kW
AS 900 | Capacity: 15 m³ | PTO power: 45 HP (34 kW) | Electric power: 25 kW
AS 1000 | Capacity: 17 m³ | PTO power: 50 HP (37 kW) | Electric power: 27 kW
AS 1150 | Capacity: 19 m³ | PTO power: 55 HP (41 kW) | Electric power: 31 kW

Available models — Width 3.2 m
AS 1350 | Capacity: 21 m³ | PTO power: 65 HP (49 kW) | Electric power: 37 kW
AS 1550 | Capacity: 28.5 m³ | PTO power: 70 HP (52 kW) | Electric power: 39 kW
AS 1750 | Capacity: 32 m³ | PTO power: 75 HP (56 kW) | Electric power: 42 kW

Available models — Width 4 m
AS 2250 | Capacity: 44 m³ | PTO power: 100 HP (75 kW) | Electric power: 54 kW
AS 2650 | Capacity: 52 m³ | PTO power: 100 HP (75 kW) | Electric power: 55 kW
AS 3150 | Capacity: 58 m³ | PTO power: 110 HP (82 kW) | Electric power: 57 kW
AS 3550 | Capacity: 64 m³ | PTO power: 150 HP (112 kW) | Electric power: 85 kW
AS 3750 | Capacity: 75 m³ | PTO power: 150 HP (112 kW) | Electric power: 85 kW

Technical characteristics

• Drying type: Direct‑flame drying for efficient heat transfer.
• Heat management: Refractory‑lined chamber to stabilize temperature and maximize combustion efficiency.
• Product handling: Continuous internal motion plus loading and central augers and swivel discharge for controlled flow.
• Burner options: Diesel standard; methane gas or LPG on request.
• Drive options: PTO (cardan), electric or mixed drives.
• Control: Central electrical panel with automatic or manual operation.
• Sensors: Temperature sensors for process monitoring.
• Serviceability: Designed for straightforward maintenance and cleaning; configurations available to match farm requirements.
