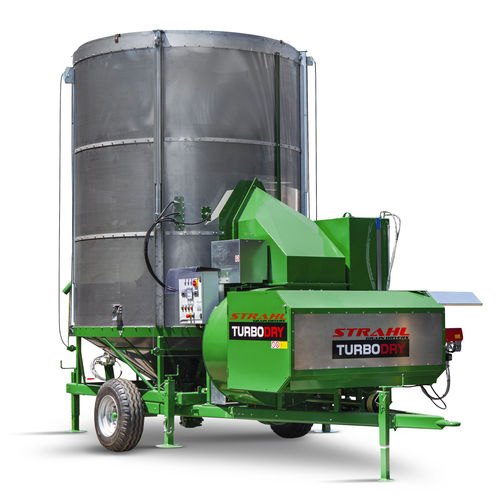

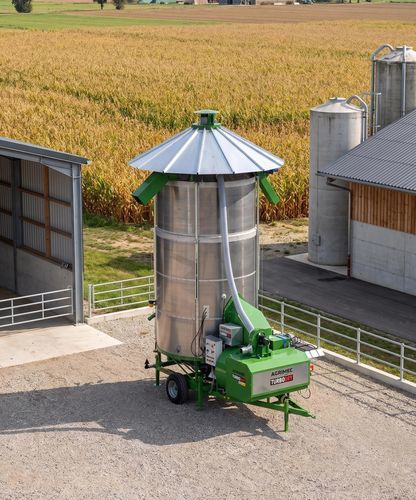

Grain dryer TURBODRY AS 1000

cerealseedmobile

Overview
Developed from detailed knowledge of agricultural drying requirements, the TURBODRY series by Strahl comprises direct‑flame grain dryers available in multiple sizes and configurations. Units are engineered for straightforward maintenance and cleaning and can be equipped to match farm operational needs, with PTO, electric or mixed drives and several burner options.

Compact efficiency - Key advantages

• Thermal optimization: Generated heat is directed onto the product to minimize losses and improve process energy efficiency.
• Temperature stability: The drying chamber lined with refractory material stabilizes hot‑air temperature to support complete combustion and energy savings.
• Drying homogeneity: Continuous internal movement of grain, legumes or seeds ensures uniform moisture reduction and better preservation.
• Fast drying: Large heat‑exchange surface between hot air and product enables shorter drying cycles without compromising quality.

Core components (product visualizer items)

• Loading Auger - Feeds product into the dryer bell for initial charging.
• Central Auger - Transports material upward and reintroduces it into the drying zone; assists discharge of dried product.
• Swivel Discharge - Allows gravity discharge or, on flat installations, an electric motor auger provides a controlled flow.
• Burner - Heat source for drying; diesel burners are standard, with methane gas or LPG options available on request.
• Fan - Draws ambient air through the preheated furnace and distributes it into the bell to reduce moisture evenly.
• Expulsion Cleaner - Removes impurities via a drop‑expulsion mechanism, separating unwanted fractions from input or output streams.
• Electrical Panel (automatic/manual) - Centralized control for automatic or manual operation of the dryer.
• Drive (PTO and/or electric) - Mobile units can be supplied with PTO (cardan), electric or mixed drives according to operational needs.
• Sensors - Temperature sensors monitor product temperature during drying cycles.

Models and Technical Tables
Width 2.25 m
AS 400 | 8 m³ | PTO power 30 HP (22 kW) | Electric power 17 kW | (dimensional drawings available)
AS 500 | 10 m³ | PTO power 35 HP (26 kW) | Electric power 17.5 kW | (dimensional drawings available)

Width 2.55 m
AS 600 | 11.5 m³ | PTO power 40 HP (30 kW) | Electric power 21 kW | (dimensional drawings available)
AS 900 | 15 m³ | PTO power 45 HP (34 kW) | Electric power 25 kW | (dimensional drawings available)
AS 1000 | 17 m³ | PTO power 50 HP (37 kW) | Electric power 27 kW | (dimensional drawings available)
AS 1150 | 19 m³ | PTO power 55 HP (41 kW) | Electric power 31 kW | (dimensional drawings available)

Width 3.2 m
AS 1350 | 21 m³ | PTO power 65 HP (49 kW) | Electric power 37 kW | (dimensional drawings available)
AS 1550 | 28.5 m³ | PTO power 70 HP (52 kW) | Electric power 39 kW | (dimensional drawings available)
AS 1750 | 32 m³ | PTO power 75 HP (56 kW) | Electric power 42 kW | (dimensional drawings available)

Width 4 m
AS 2250 | 44 m³ | PTO power 100 HP (75 kW) | Electric power 54 kW | (dimensional drawings available)
AS 2650 | 52 m³ | PTO power 100 HP (75 kW) | Electric power 55 kW | (dimensional drawings available)
AS 3150 | 58 m³ | PTO power 110 HP (82 kW) | Electric power 57 kW | (dimensional drawings available)
AS 3550 | 64 m³ | PTO power 150 HP (112 kW) | Electric power 85 kW | (dimensional drawings available)
AS 3750 | 75 m³ | PTO power 150 HP (112 kW) | Electric power 85 kW | (dimensional drawings available)

Technical specifications

• Brand: Strahl
• Series: TURBODRY Series
• Drying type: Direct‑flame drying
• Burner options: diesel standard; methane gas or LPG on request
• Drive options: PTO (cardan), electric or mixed drive for mobile units
• Control: Electrical panel for centralized management in automatic or manual mode
• Sensors: Temperature sensors for product monitoring
• Model range: AS 400 to AS 3750, capacities from 8 m³ to 75 m³ with corresponding PTO/electric power ratings (see tables above)
• Dimensional drawings: Available for each model on request
