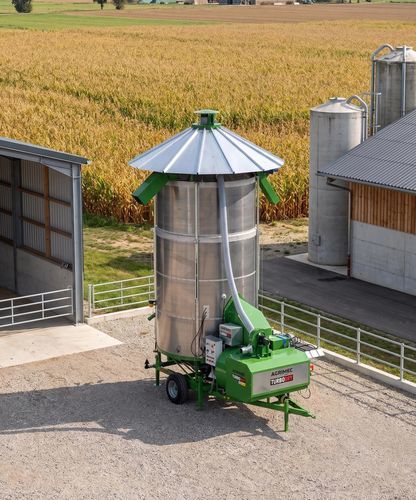

Grain dryer TURBODRY AS 900

seedmobilewheeled

Overview
Born from in-depth knowledge of agricultural requirements, the TURBODRY series comprises direct‑flame grain dryers engineered for efficient drying, simple maintenance and configurable operation. Models vary by width, power and maximum capacity to fit different farm scales and workflows.

Key features

• Direct‑flame drying for high thermal yield and reduced fuel consumption.
• Thermal optimization: generated heat is channeled to the product to minimize losses and improve process efficiency.
• Temperature stability: refractory‑lined drying chamber stabilizes hot‑air temperature for more complete combustion.
• Drying homogeneity: continuous internal product movement ensures uniform moisture reduction.
• Fast drying: large heat‑exchange surface between hot air and product enables shorter drying cycles without quality loss.

Product components (visualizer slides)

• Loading auger: feeds the product into the dryer bell.
• Central auger: lifts and recirculates product within the drying zone and assists discharge of dried material.
• Swivel discharge: allows gravity discharge or, on flat surfaces, electric‑motor auger discharge for consistent flow.
• Burner: heat source; diesel burners standard, methane or LPG burners available on request.
• Fan: draws external air through the preheated furnace and into the bell for even moisture reduction.
• Expulsion cleaner: removes impurities by drop‑expulsion separation of unwanted fractions.
• Electrical panel (automatic/manual): centralized control of dryer functions in automatic or manual mode.
• Drive (PTO and/or electric): available PTO (cardan), electric or mixed drive depending on needs.
• Sensors: temperature sensors monitor product temperature during drying cycles.

Models and capacities
Width 2.25 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5

Width 2.55 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31

Width 3.2 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42

Width 4 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 2550 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Notes
The TURBODRY range is configurable by size, drive and burner type to match specific farm requirements. Standard burners are diesel; methane or LPG are optional. Drives available: PTO, electric or mixed. Control via electrical panel in automatic or manual mode.

Technical specifications

• Series name: TURBODRY.
• Drying method: direct‑flame drying for high energy yield.
• Thermal management: heat directed to product; refractory lining for temperature stability.
• Product handling: continuous movement, central auger recirculation, loading auger and swivel or auger discharge.
• Cleaning: expulsion cleaner to separate impurities.
• Burner options: diesel standard; methane or LPG on request.
• Air handling: fan draws preheated air into the bell for uniform drying.
• Control: electrical panel with automatic and manual modes.
• Drive options: PTO (cardan), electric or mixed.
• Sensors: temperature sensors for process monitoring.
• Model capacity range: 8 m³ (AS 400) to 75 m³ (AS 3750).
• Intended use: drying of grain, legumes and seeds; configurable for farm requirements.
