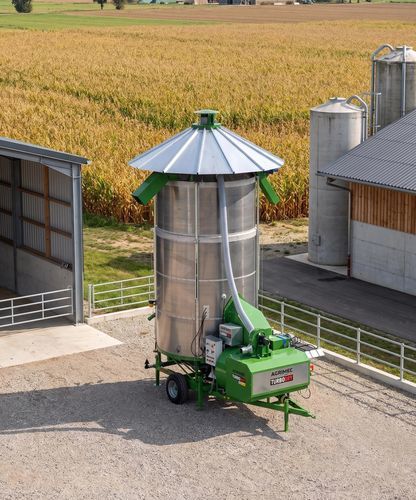

Cereal dryer TURBODRY AS 2650

seedmobilewheeled

Overview
Born from agricultural expertise, the TURBODRY series consists of mobile grain dryers engineered for direct‑flame drying, configurable sizes and high throughput. Models vary by width, capacity and drive/power options to match farm operational needs.

Compact Efficiency

• Thermal optimization: Generated heat is directed onto the product to minimize losses and improve process energy efficiency.
• Temperature stability: Refractory‑lined drying chamber stabilizes hot‑air temperature for more complete combustion and energy savings.
• Drying homogeneity: Continuous internal product movement ensures uniform drying, preserving quality and storage properties.
• Fast drying: Large heat‑exchange surface between hot air and grain enables reduced drying times without quality loss.

Core components and functions

• Loading auger: Feeds product into the dryer bell.
• Central auger: Transports product upward and reintroduces it into the drying area; assists discharge of dried product.
• Swivel discharge: Dried grain can be gravity‑discharged or, on flat ground, via an electric auger for constant flow.
• Burner: Heat source for drying; standard diesel burners supplied, methane or LPG burners available on request.
• Fan: Draws external air through the preheated furnace and distributes hot air in the bell to lower moisture uniformly.
• Expulsion cleaner: Removes impurities by drop‑expulsion, separating undesired fractions.
• Electrical panel (automatic/manual): Centralized management of dryer operations with automatic or manual modes.
• Drive (PTO and/or electric): Mobile units available with PTO (cardan), electric or mixed drives.
• Sensors: Temperature sensors monitor product temperature during drying cycles.

Models
Width 2.25 m
Header: Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5

Width 2.55 m
Header: Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31

Width 3.2 m
Header: Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42

Width 4 m
Header: Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
AS 2250 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Technical specifications

• Series name: TURBODRY Series
• Manufacturer / Brand: Strahl
• Drying method: Direct‑flame drying for high energy yield and reduced consumption
• Application: Agricultural use — grains, legumes, seeds
• Burner options: Standard diesel; methane or LPG available on request
• Heat management: Refractory‑lined drying chamber for temperature stability and optimized transfer
• Product motion: Continuous internal movement for homogeneous drying
• Control system: Electrical panel with automatic and manual modes
• Drive options: PTO (cardan), electric or mixed
• Sensors: Temperature sensors for product monitoring
• Model range: Capacities from 8 m³ (AS 400) to 75 m³ (AS 3750)
• PTO power range: 30 HP (22 kW) to 150 HP (112 kW) depending on model
• Electric power range: 17 kW to 85 kW depending on model
