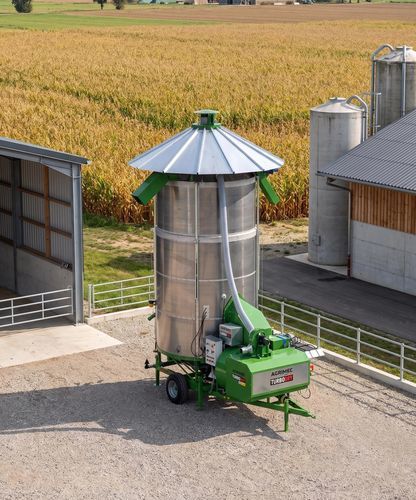

Grain dryer TURODRY AS 2250

seedmobilewheeled

Overview
Born from deep knowledge of agricultural needs, the TURBODRY series comprises mobile and fixed grain dryers engineered for direct-flame drying. Models differ by size, power and maximum production capacity and can be configured with construction variants to meet specific farm requirements.

Compact Efficiency

• Thermal optimization: All generated heat is channelled directly onto the product to minimise losses and optimise process energy efficiency.
• Temperature stability: The drying chamber lined with refractory material stabilises hot-air temperature, enabling more complete combustion and energy savings.
• Drying homogeneity: Grain, legume or seed is kept in constant motion inside the dryer for uniform drying that preserves product quality.
• Fast drying: The structure provides a large heat-exchange surface between hot air and product, allowing reduced drying times without compromising quality.

Main Components (visualizer)

• Loading auger: Loads the product into the dryer bell.
• Central auger: Transports product upward, reintroducing it into the drying area and aiding discharge of dried product.
• Swivel discharge: Enables gravity discharge or, without slope, discharge via an electric-motor auger for constant flow.
• Burner: Heat source for drying. Standard equipment includes diesel burners; methane gas or LPG burners available on request.
• Fan: Draws external air, channels it through the pre-heated furnace and sends it into the bell to reduce product moisture uniformly.
• Expulsion cleaner: Removes impurities via a drop-expulsion mechanism, separating unwanted fractions.
• Electrical panel (automatic/manual): Centralised management of dryer operations in automatic or manual mode.
• Drive (PTO and/or electric): Mobile dryers available with PTO (cardan), electric or mixed drive depending on operational needs.
• Sensors: Temperature sensors measure and monitor product temperature during drying processes.

Models and technical data
Table header: Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
Width 2.25 m
AS 400 | 8 | 30 (22) | 17
AS 500 | 10 | 35 (26) | 17.5
Width 2.55 m
AS 600 | 11.5 | 40 (30) | 21
AS 900 | 15 | 45 (34) | 25
AS 1000 | 17 | 50 (37) | 27
AS 1150 | 19 | 55 (41) | 31
Width 3.2 m
AS 1350 | 21 | 65 (49) | 37
AS 1550 | 28.5 | 70 (52) | 39
AS 1750 | 32 | 75 (56) | 42
Width 4 m
AS 2250 | 44 | 100 (75) | 54
AS 2650 | 52 | 100 (75) | 55
AS 3150 | 58 | 110 (82) | 57
AS 3550 | 64 | 150 (112) | 85
AS 3750 | 75 | 150 (112) | 85

Characteristics / technical specifications

• Series: TURBODRY
• Brand: Strahl
• Drying method: Direct-flame drying for high energy yield and reduced consumption
• Fuel options: Diesel burners standard; methane gas or LPG available on request
• Drive options: PTO (cardan), electric or mixed
• Control: Electrical panel with automatic and manual modes
• Sensors: Temperature sensors for monitoring product temperature during drying
• Design emphasis: Thermal optimization, temperature stability, drying homogeneity and fast drying via large heat-exchange surface
• Range: Multiple AS models across widths 2.25 m, 2.55 m, 3.2 m and 4 m with capacities from 8 m³ up to 75 m³
