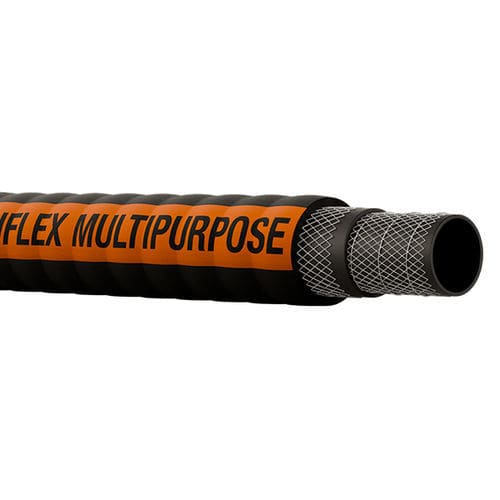

Hose Ryltec Corruflex multipurpose

dischargerubbersuction

Overview
Hose with corrugated surface designed for suction and discharge applications. Suitable for multipurpose spindle use including hot water (short peaks up to 120 °C), fuel transfer with up to 50% aromatic content, and oil return lines. Flexible design also makes it suitable for marine engine applications.

Construction
NBR (nitrile butadiene rubber) mandrel hose with corrugated textile reinforcement and corrugated outer surface.

Operating range
Temperature: -30 °C to +70 °C (occasional peaks up to 120 °C as indicated for specific applications).
Working pressure (WP): 12 bar (ISO1307).

Marking
RYLTEC CORRUFLEX MULTIPURPOSE SUCTION AND DISCHARGE – WP10 BAR (150PSI) – Ref. Ø.

Available items (Item / Code / Ø (mm))
Item | Code | Ø (mm)
C319016 | 3610 | 16×25
C319019 | 3611 | 19×28
C319025 | 3612 | 25×35
C319030 | 3613 | 30×40
C319032 | 3614 | 32×42
C319035 | 3615 | 35×45
C319040 | 3617 | 40×52
C319045 | 3618 | 45×57
C319051 | 3619 | 51×63
C319055 | 3620 | 55×67
C319060 | 3621 | 60×72
C319070 | 3622 | 70×82
C319076 | 3623 | 76×88
C319080 | 3624 | 80×92
C319090 | 3625 | 90×102
C319102 | 3626 | 102×114

Characteristics / technical specifications

• Material: NBR (nitrile butadiene rubber) mandrel.
• Reinforcement: corrugated textile reinforcement.
• Surface: corrugated.
• Typical applications: suction and discharge (multipurpose), hot water handling (peaks up to 120 °C), fuel transfer (max 50% aromatic), oil return circuits, suitable for marine/boat engines due to flexibility.
• Temperature range: -30 °C to +70 °C (with occasional peaks up to 120 °C as specified).
• Working pressure (WP): 12 bar (ISO1307).
• Marking: RYLTEC CORRUFLEX MULTIPURPOSE SUCTION AND DISCHARGE – WP10 BAR (150PSI) – Ref. Ø.
• Available sizes: see table above for item references and codes.
