Hose Ryltec 2512

milkingdischargesupply

Product

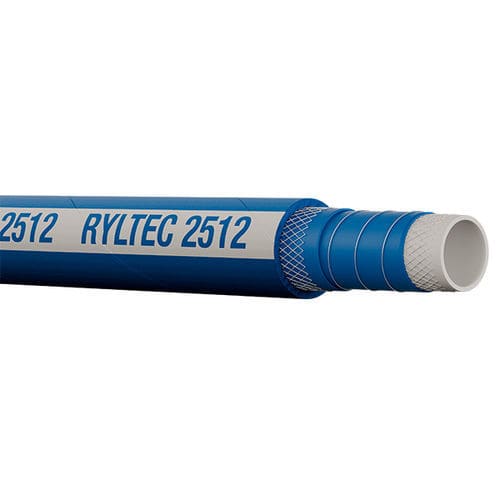

EPDM mandrel-built hose with blue exterior and white inner tube, textile reinforcement and steel spiral. Inner tube suitable for food contact; compliant with FDA Title 21 177.2600 and ISO 1307.

Applications

• Mandrel hose for suction and discharge of food products: milk, wine, beer, 92% alcohol, fruit juices, yoghurt
• Hot air and steam applications up to 120°C

Performance
Temperature range: -30°C to +120°C. Working pressure (WP): 10 bar (150 PSI).

Marking
RYLTEC 2512 – MILK TANKER SUCTION AND DISCHARGE – WP 10 BAR (150PSI) – FDA – Ref. Ø.

Available items
Item | Code | Ø (mm)
C315019* | 3697 | 19×30
C315025* | 3698 | 25×38
C315032* | 3699 | 30×43
C315038* | 3700 | 38×51
C315040 | 3701 | 40×53
C315045 | 3702 | 45×55
C315051 | 3703 | 51×62
C315063 | 3705 | 63×75
C315076 | 3707 | 76×87
C315080 | 3708 | 80×95
C315090 | 3709 | 90×105
C315102 | 3710 | 102×118
* Ø without steel spiral

Technical specifications

• Construction: EPDM rubber mandrel-built hose with textile reinforcement and steel spiral (where applicable)
• Exterior: blue EPDM
• Interior: white EPDM (food contact inner tube)
• Temperature range: -30°C to +120°C
• Working pressure (WP): 10 bar (150 PSI)
• Standards / Approvals: FDA Title 21 177.2600; ISO 1307
• Typical applications: suction and discharge of milk and other food products; propulsion of beverages and liquids; hot air and steam service
• Marking example: RYLTEC 2512 – MILK TANKER SUCTION AND DISCHARGE – WP 10 BAR (150PSI) – FDA – Ref. Ø
• Available diameters: see table (inner × outer mm) and item codes
