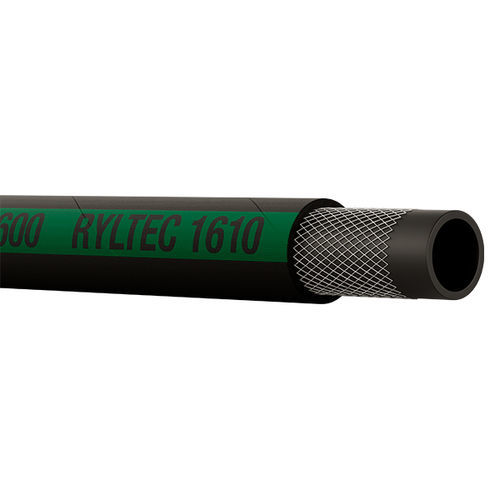

Hose Ryltec 1610

dischargerubber

Product description
Anti-abrasive mandrel hose specific for cement mortar, plaster and concrete discharge at 10 bar.

General construction
Conductive Natural Rubber (NR) mandrel hose with textile reinforcement and integrated antistatic copper wire.

Operating conditions
Temperature range: -30°C to +80°C.
Working pressure (WP): 10 bar (ISO1307).

Marking
RYLTEC 1610 – DRY BULK & MORTAR DISCHARGE – WP 10 BAR (150PSI) – Ref. Ø.

Sizes (table)
Item | Code | Ø (mm)
C308025 | 3500 | 25×40
C308040 | 3505 | 40×59
C308051 | 3507 | 51×70
C308060 | 3508 | 60×80
C308065 | 3511 | 65×85

Characteristics / technical specifications

• Type: Anti-abrasive mandrel hose for dry bulk and mortar discharge
• Material: Natural Rubber (NR), conductive
• Reinforcement: Textile reinforcement
• Antistatic: Integrated copper wire for antistatic properties
• Working pressure (WP): 10 bar (ISO1307)
• Temperature range: -30°C to +80°C
• Typical applications: Cement mortar, plaster and concrete delivery; handling of dry bulk materials
• Marking: RYLTEC 1610 – DRY BULK & MORTAR DISCHARGE – WP 10 BAR (150PSI) – Ref. Ø
• Available variants / diameters (item and code): C308025 (3500) 25×40; C308040 (3505) 40×59; C308051 (3507) 51×70; C308060 (3508) 60×80; C308065 (3511) 65×85
