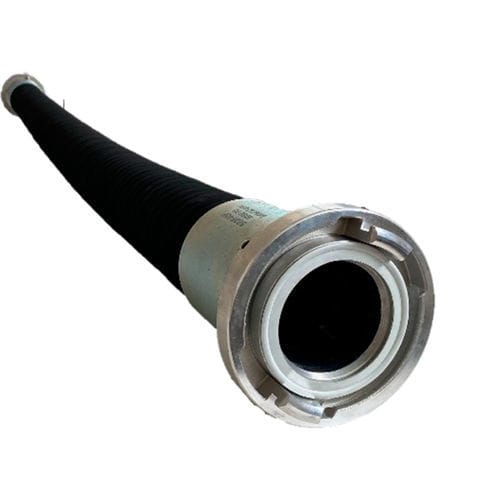

Hose Ryltec fire truck

dischargerubbersuction

Overview

• Designed for suction and delivery of wastewater, slurry, drains and general industrial applications.
• Smooth cuffs on both ends for easy coupling.
• Inner tube: SBR synthetic rubber resistant to oils in suspension.

Standards and temperature
Manufactured according to ISO 1307.
Service temperature: -30°C (-22°F) to 85°C (176°F).

Table - Technical data
Part number | Nominal Inner Diameter (mm) | Smooth cuff ends length (mm) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Vacuum (m H₂O) | Bending Radius (mm) | Nominal Weight (kg/m) | Length (m)
C302102* | 102 | 100 | 10 | 150 | 30 | 450 | 9 | 500 | 3.40 | 1-6
C302110 | 110 | 110 | 10 | 150 | 30 | 450 | 9 | 550 | 3.82 | 1-6
C302152 | 152 | 150 | 5 | 75 | 15 | 225 | 8 | 750 | 5.60 | 1-6
*Available on request. Other diameters also available on request.

Characteristics / Technical specifications

• Application: suction and delivery of wastewater, slurry, drains and general industrial use.
• Inner tube: SBR synthetic rubber resistant to oils in suspension.
• Construction: corrugated mandrel hose with textile reinforcement and steel wire spiral.
• Ends: Smooth cuffs on both ends for easy coupling.
• Standards: Manufactured according to ISO 1307.
• Temperature range: -30°C (-22°F) to 85°C (176°F).
• Available part numbers and key dimensions/ratings: see table above (C302102, C302110, C302152).
