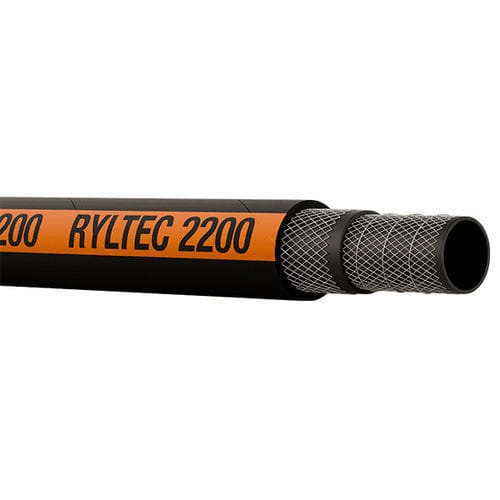

Hose Ryltec 2200

supplydischargerubber

Product type
NBR rubber mandrel hose for fuel and oil suction and discharge, with textile reinforcement and steel wire spiral.

Applications

• Hydrocarbon suction and discharge
• Unloading of tanker trucks
• Fuel transfers (compatible with fuels containing up to 50% aromatics)
• Oil return line circuits

Operating conditions

• Temperature range: -30°C to +70°C
• Working pressure (WP): 16 bar (ISO1307)

Marking
RYLTEC 2200 FUEL & OIL SUCTION AND DISCHARGE – WP 16 BAR (240PSI) – Ref. Ø.

Available items / dimensions
Item | Code | Ø (mm)
C313019 | 3167 | 19×30
C313025 | 3416 | 25×36
C313030 | 3412 | 30×40
C313032 | 3413 | 32×42
C313035 | 3400 | 35×46
C313038 | 3401 | 38×49
C313040 | 3402 | 40×51
C313045 | 3403 | 45×57
C313051 | 3404 | 51×64
C313060 | 3405 | 60×74
C313070 | 3407 | 70×85
C313076 | 3408 | 76×91
C313080 | 3409 | 80×97
C313090 | 3410 | 90×104
C313102 | 3411 | 102×117
C313152 | 3414 | 152×168

Characteristics / technical specifications

• Inner/outer material: NBR (nitrile butadiene rubber), mandrel construction
• Reinforcement: textile layers with steel wire spiral
• Temperature range: -30°C to +70°C
• Working pressure: 16 bar (ISO1307)
• Maximum aromatic content of compatible fuels: 50%
• Typical uses: suction and discharge of fuel and oil, tanker unloading, return line circuits
• Marking: product name, service description and WP 16 BAR (240PSI)
