Hose Ryltec 2612

dischargerubbersuction

Product description
Mandrel hose for suction and discharge of food and beverage products, including olive oil, fatty products, milk, wine, beer, fruit juice, yoghurt and industrial fluids up to 96% alcohol.

Construction

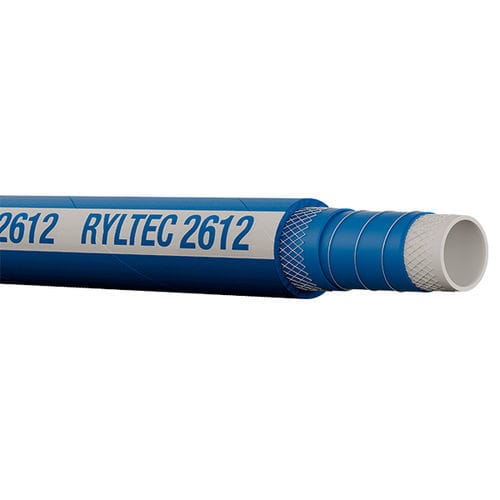

NBR (nitrile) mandrel hose with blue exterior and white interior, textile reinforcement and steel spiral.

Key features

• Suitable for food and beverages, including fatty products
• Temperature range: -30°C to +80°C
• Working pressure (WP): 10 bar (150 PSI)
• Complies with FDA Title 21 CFR 177.2600
• Referenced to ISO 1307

Marking
RYLTEC 2612 – FAT FOOD % BEVERAGES SUCTION AND DISCHARGE – WP 10 BAR (150PSI) – FDA – Ref. Ø.

Available items / Dimensions
Item | Code | Ø (mm)
C325019 | 3730 | 19×31
C325025 | 3731 | 25×37
C325032 | 3732 | 32×44
C325038 | 3733 | 38×50
C325051 | 3734 | 51×63
C325063 | 3735 | 63×75
C325076 | 3736 | 76×88

Applications

• Suction and discharge of olive oil
• Suction and discharge of other fatty food products
• Dairy products such as milk and yoghurt
• Beverages such as wine, beer and fruit juice
• Industrial fluids containing up to 96% alcohol

Technical specifications

• Model: Ryltec 2612
• Material: NBR mandrel construction
• Exterior colour: blue; Interior colour: white
• Reinforcement: textile cover with steel spiral
• Temperature range: -30°C to +80°C
• Working pressure (WP): 10 bar (150 PSI)
• Standards: FDA Title 21 CFR 177.2600; ISO 1307 referenced
• Typical uses: suction and propulsion of food and beverage products, including fatty and high-alcohol liquids
• Available diameters (mm): 19×31, 25×37, 32×44, 38×50, 51×63, 63×75, 76×88
