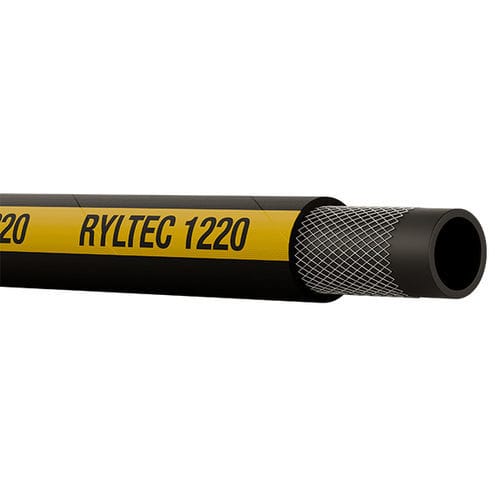

Hose Ryltec 1220

air distributionwateringrubber

Product overview
Hose for air and water propulsion at 20 bar, suitable for compressors, pneumatic equipment, mining and public works. Designed for general industrial and construction use. Temperature range: -30°C to +70°C. WP: 20 bar (ISO1307). Marking on hose: RYLTEC 1220 COMPRESSED AIR HOSE – HEAVY DUTY – WP 20 BAR (300PSI) – Ref. Ø

Available sizes (table)
Item | Code | Ø (mm)
C305013 | 3300 | 13×23
C305016 | 3301 | 16×26
C305020 | 3307 | 19×31
C305025 | 3303 | 25×37
C305030 | 3304 | 30×44
C305032 | 3305 | 32×48
C305035 | 3318 | 35×51
C305038 | 3306 | 38×53
C305040 | 3308 | 40×56
C305045 | 3309 | 45×61
C305051 | 3310 | 51×66
C305060 | 3311 | 60×76
C305063 | 3312 | 63×79
C305075 | 3314 | 76×91
C305090 | 3316 | 90×106
C305102 | 3317 | 102×120

Characteristics / technical specifications

• Material: SBR rubber (mandrel-built)
• Reinforcement: textile reinforcement
• Intended use: air and water propulsion, compressors, pneumatic equipment, mining, public works, general industrial and construction use
• Working pressure (WP): 20 bar (ISO1307)
• Temperature range: -30°C to +70°C
• Marking on hose: RYLTEC 1220 COMPRESSED AIR HOSE – HEAVY DUTY – WP 20 BAR (300PSI) – Ref. Ø
• Available items / sizes: see table above (Item / Code / Ø mm)
