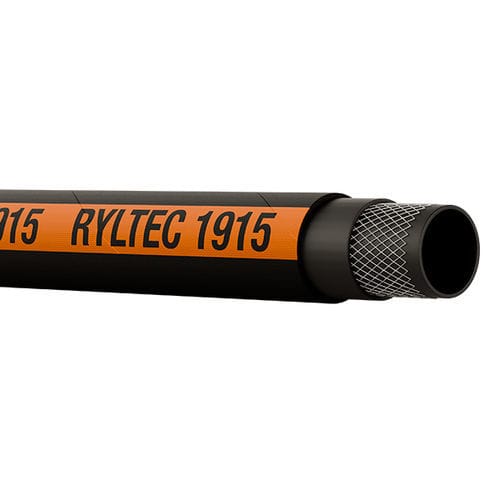

Hose Ryltec 1915

dischargesupplyrubber

Description
NBR (nitrile rubber) mandrel hose with textile reinforcement and conductive main threads, designed for fuel and oil discharge applications.

Applications
Hose for hydrocarbon propulsion, truck unloading, fuel transfer operations with a maximum aromatic content of 50%, and for oils in return line circuits.

Performance
Temperature range: -30°C to +80°C.
Working pressure (WP): 16 bar (ISO1307) (240 PSI).

Marking
RYLTEC 1915 FUEL & OIL DISCHARGE – WP 16 BAR (240PSI) – Ref. Ø.

Available items / Sizes (table)
Item | Code | Ø (mm)
C306012 | 3319 | 13×24
C306016 | 3371 | 16×27
C306019 | 3352 | 19×31
C306022 | 3321 | 22×34
C306025 | 3353 | 25×37
C306028 | 3322 | 28×41
C306030 | 3354 | 30×42
C306032 | 3355 | 32×44
C306035 | 3356 | 35×47
C306038 | 3357 | 38×50
C306040 | 3358 | 40×55
C306045 | 3359 | 45×60
C306051 | 3360 | 51×67
C306055 | – | 55X69
C306060 | 3361 | 60×75
C306063 | 3362 | 63×79
C306070 | 3363 | 70×86
C306076 | 3364 | 76×92
C306080 | 3365 | 80×96
C306090 | 3366 | 90×106
C306102 | 3367 | 102×117
C306110 | 3372 | 110×126
C306114 | 3373 | 114×130
C306125 | 3374 | 125×143
C306152 | 3375 | 152×170

Characteristics / Technical specifications

• Material: NBR (nitrile rubber) internal and external compound.
• Construction: Mandrel-built rubber hose with textile reinforcement and conductive main threads (anti-static).
• Intended media: Hydrocarbons (up to 50% aromatic content), fuels, oils (including return line circuits).
• Temperature range: -30°C to +80°C.
• Working pressure: 16 bar (ISO1307) — equivalent to 240 PSI.
• Marking: RYLTEC 1915 FUEL & OIL DISCHARGE – WP 16 BAR (240PSI) – Ref. Ø.
• Available sizes: Multiple diameters from 13×24 mm up to 152×170 mm (see table above for item codes and diameters).
• Typical uses: Fuel/oil discharge, truck unloading, fuel transfer lines.
