Hose Ryltec 1210

air distributionsupplyrubber

Product

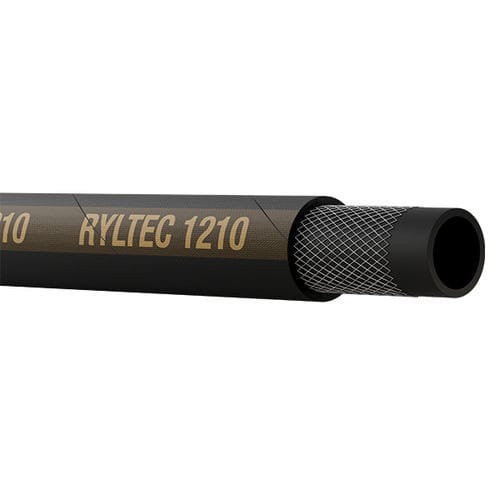

SBR rubber mandrel hose with textile reinforcement for air and water propulsion. Suitable for compressed air systems, pneumatic tools, compressors, mining, public works and general industrial and construction use.

Operating conditions
Temperature range: -30°C to +70°C.
Working pressure (WP): 10 bar (ISO1307).

Marking
RYLTEC 1210 COMPRESSED AIR HOSE – STANDARD DUTY – WP 10 BAR (150PSI) – Ref. Ø.

Items / Sizes (table)
Item | Code | Ø (mm)
C303013 | 3050 | 13 x 22
C303016 | 3051 | 16 x 25
C303019 | 3052 | 19 x 29
C303025 | 3053 | 25 x 36
C303030 | 3054 | 30 x 40
C303032 | 3055 | 32 x 42
C303035 | 3056 | 35 x 45
C303038 | 3057 | 38 x 50
C303040 | 3058 | 40 x 50
C303045 | 3059 | 45 x 57
C303051 | 3060 | 51 x 64
C303060 | 3061 | 60 x 75
C303070 | 3063 | 70 x 84
C303076 | 3064 | 76 x 90
C303080 | 3065 | 80 x 92
C303090 | 3066 | 90 x 105
C303102 | 3067 | 102 x 117
C303127 | 3068 | 127 x 142
C303152 | 3069 | 152 x 167

Technical characteristics / specifications

• Material: SBR (styrene-butadiene rubber), mandrel construction.
• Reinforcement: Textile reinforcement.
• Applications: Air and water propulsion; compressors; pneumatic equipment; mining; public works; general industrial and construction use.
• Working pressure (WP): 10 bar (150 PSI) according to ISO1307.
• Temperature range: -30°C to +70°C.
• External marking: RYLTEC 1210 COMPRESSED AIR HOSE – STANDARD DUTY – WP 10 BAR (150PSI) – Ref. Ø.
• Available sizes: Ø 13 x 22 mm up to Ø 152 x 167 mm (see table).
• Internal references/codes: see table above.
