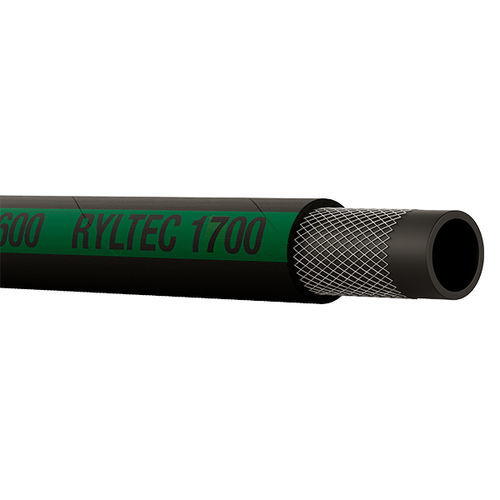

Supply hose Ryltec 1700

dischargerubberanti-suction

Overview
Conductive natural rubber (NR) mandrel hose designed for the delivery and discharge of abrasive powders in industrial applications. Textile reinforcement provides dimensional stability while the anti-abrasive rubber compound ensures extended service life when handling cement, plaster, sand and similar products.

Application
Intended for suctionless delivery and discharge of abrasive pulverulent materials at low pressure. Typical uses include conveying dry cement from silos, plaster, sand and other powdery abrasive products in construction and bulk-handling operations.

Operational data
Temperature range: -30°C to +80°C.
Working pressure (WP): 5 bar (ISO 1307).
Marking: RYLTEC 1700 – DRY CEMENT SILO – WP 5 BAR (75PSI) – Ref. Ø.

Product references
RYLTEC 1700
Item | Code | Ø (mm)
C311076 | 3554 | 76×91
C311080 | 3555 | 80×96
C311090 | 3556 | 90×106
C311100 | 3557 | 100×116

RYLTEC 1700-L
Item | Code | Ø (mm)
C310076 | 3600 | 76×88
C310090 | 3602 | 90×102
C310100 | 3603 | 100×112

Technical characteristics

• Material: Conductive natural rubber (NR) with mandrel construction and textile reinforcement.
• Design: Mandrel hose with anti-abrasive compound formulated for powdery and abrasive products.
• Primary uses: Delivery and discharge of cement powder, plaster, sand and similar abrasive powders.
• Working pressure: 5 bar (ISO 1307).
• Temperature range: -30°C to +80°C.
• Marking on hose: RYLTEC 1700 – DRY CEMENT SILO – WP 5 BAR (75PSI) – Ref. Ø.
• Available references and nominal diameters: see product tables for RYLTEC 1700 and RYLTEC 1700-L.
