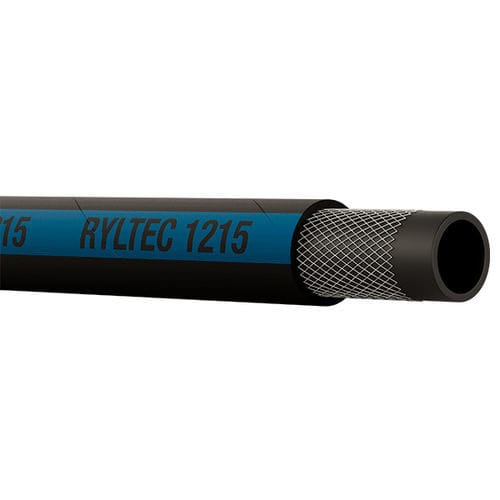

Hose Ryltec 1215

dischargesupplyair distribution

Overview
Hose for compressed air and water propulsion at 15 bar. Suitable for compressors, pneumatic equipment, mining, public works and general industrial and construction use.

Product type
SBR (styrene‑butadiene rubber) mandrel‑built hose with textile reinforcement.

Operating conditions

• Temperature range: -30°C to +70°C
• Working pressure (WP): 15 bar (ISO 1307)

Marking
RYLTEC 1215 COMPRESSED AIR HOSE – MEDIUM DUTY – WP 15 BAR (225PSI) – Ref. Ø.

Available items / Sizes (table)
Item | Code | Ø (mm)
C304013 | 3100 | 13×23
C304016 | 3101 | 16×26
C304019 | 3102 | 19×30
C304025 | 3103 | 25×36
C304030 | 3104 | 30×41
C304032 | 3105 | 32×43
C304035 | 3106 | 35×46
C304038 | 3074 | 38×53
C304040 | 3108 | 40×54
C304045 | 3109 | 45×58
C304051 | 3110 | 51×65
C304060 | 3111 | 60×76
C304063 | 3112 | 63×78
C304070 | 3113 | 70×85
C304076 | 3114 | 76×91
C304080 | 3115 | 80×95
C304090 | 3116 | 90×105
C304102 | 3117 | 102×117

Technical specifications

• Commercial name: Ryltec 1215
• Material: SBR (styrene‑butadiene rubber)
• Construction: Mandrel‑built rubber hose with textile reinforcement
• Intended use: Compressed air and water propulsion; compressors; pneumatic equipment; mining; public works; general industrial and construction use
• Temperature range: -30°C to +70°C
• Working pressure (WP): 15 bar (225 PSI) — ISO 1307 referenced
• Marking: Product name and working pressure printed on hose as shown above
• Available diameters / references: see table above
