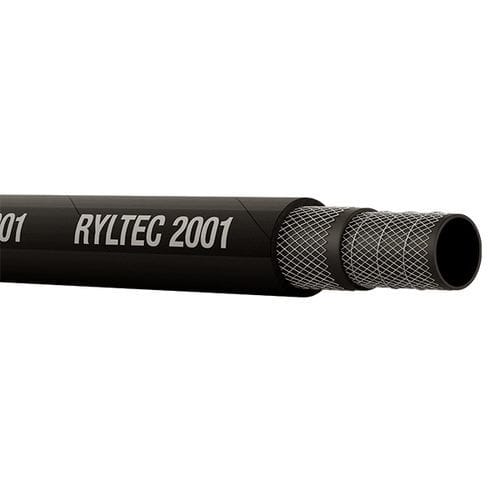

Hose Ryltec 2001

air distributiondischargepolyester sheath

Product
SBR rubber mandrel-built suction and discharge hose with textile reinforcement and steel wire spiral. Designed for air and water suction and discharge; compatible with compressors and pneumatic equipment; suitable for mining, public works, general industrial and construction applications.

Operating conditions
Temperature range: -30°C to +70°C.
Working pressure (WP): 10 bar (ISO 1307).

Marking
RYLTEC 2001 WATER SUCTION AND DISCHARGE – WP 10 BAR (150PSI) – Ref. Ø.

Available sizes
Item | Code | Ø (mm)
C312025 | 3149 | 25×35
C312030 | 3150 | 30×40
C312035 | 3151 | 35×45
C312040 | 3153 | 40×50
C312045 | 3154 | 45×55
C312051 | 3155 | 51×61
C312060 | 3156 | 60×70
C312076 | 3159 | 76×88
C312080 | 3160 | 80×94
C312090 | 3161 | 90×101
C312102 | 3162 | 102×117
C312110 | 3164 | 110×126
C312114 | – | 114×130
C312127 | 3165 | 127×143
C312130 | 3168 | 152×166
C312203 | 3169 | 203×223
C312254 | 3170 | 254×278
C312305 | 3166 | 305×335

Technical characteristics

• Material: SBR (styrene-butadiene rubber) tube and cover.
• Construction: Mandrel-built hose with textile reinforcement and steel wire spiral.
• Intended use: Suction and discharge of air and water; compatible with compressors and pneumatic equipment; suitable for mining, public works, industrial and construction use.
• Working pressure: 10 bar (ISO 1307).
• Temperature range: -30°C to +70°C.
• Marking: Product name and working pressure printed on the hose as specified in 'Marking'.
• Nominal sizes: from 25×35 mm up to 305×335 mm (see available sizes).
