Hose Ryltec 2316

supplydischargerubber

Product description

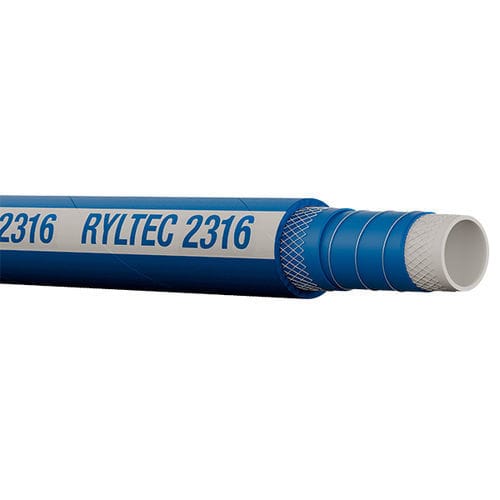

EPDM rubber mandrel hose with blue exterior and UHMWPE interior, reinforced by textile layers and a steel spiral, designed for suction and delivery of food-grade chemical products such as acids, solvents, chlorinated hydrocarbons, ketones and 98% ethyl alcohol.

Construction
External cover: EPDM rubber (blue).
Inner liner: UHMWPE.
Reinforcement: textile reinforcement combined with a steel spiral.

Performance
Temperature range: -30°C to +65°C.
Working pressure (WP): 16 bar (240 PSI).
Standards: FDA Title 21 177.2600; ISO 1307.

Marking
RYLTEC 2316 FDA ACID & CHEMICAL SUCTION AND DISCHARGE – UHMWPE – WP 16 BAR (240PSI) – Ref. Ø.

Available sizes
Item — Code — Ø (mm)
C350019 — 3910 — 19×31
C350023 — 3911 — 25×37
C350032 — 3912 — 32×44
C350038 — 3913 — 38×50
C350051 — 3915 — 51×63
C350063 — 3916 — 63×77
C350076 — 3917 — 76×92
C350057 — 3918 — 102×118

Technical specifications

• Exterior material: EPDM rubber (blue).
• Interior material: UHMWPE.
• Reinforcement: textile layers with steel spiral.
• Application: suction and delivery of food-grade chemical products (acids, solvents, chlorinated hydrocarbons, ketones, up to 98% ethyl alcohol).
• Temperature range: -30°C to +65°C.
• Working pressure: 16 bar (240 PSI).
• Compliance: FDA Title 21 177.2600; ISO 1307.
• Marking: RYLTEC 2316 FDA ACID & CHEMICAL SUCTION AND DISCHARGE – UHMWPE – WP 16 BAR (240PSI) – Ref. Ø.
