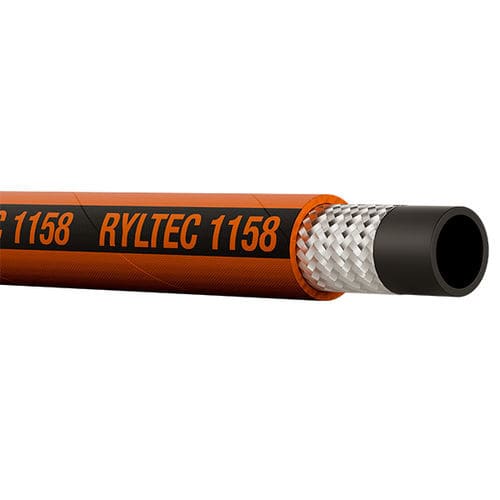

Hose Ryltec 1158

rubberstainless steelbraided

Overview

• Red CR exterior rubber mandrel hose with black EPDM interior with metal mesh reinforcement for steam circulation

Product Details

• Mandrel hose for steam circulation up to 232°C (saturated steam)
• Operating temperature range: -30°C to +210°C
• Working pressure (WP): 17 bar (ISO1307)
• Marking: RYLTEC 1158 SATURATED STEAM – STEEL WIRE – MAX. 232 C – WP 17 BAR (250PSI) – Ref. Ø

Dimensions / Available Items (table)
Item | Code | Ø (mm)
C301013 | 3750 | 13×24
C301016 | – | 16×28
C301019 | 3752 | 19×31
C311025 | 3753 | 25×38
C301032 | 3755 | 32×46
C301038 | 3757 | 38×51
C301050 | 3764 | 50×67

Characteristics / Technical specifications

• Application: steam circulation mandrel hose
• Exterior material: CR (red)
• Interior material: EPDM (black)
• Reinforcement: metal mesh / steel wire
• Maximum service temperature: up to 232°C (saturated steam)
• Operating temperature range: -30°C to +210°C
• Working pressure (WP): 17 bar (ISO1307)
• Marking details: product name, maximum temperature and WP (example: RYLTEC 1158 SATURATED STEAM – STEEL WIRE – MAX. 232 C – WP 17 BAR (250PSI) – Ref. Ø)
