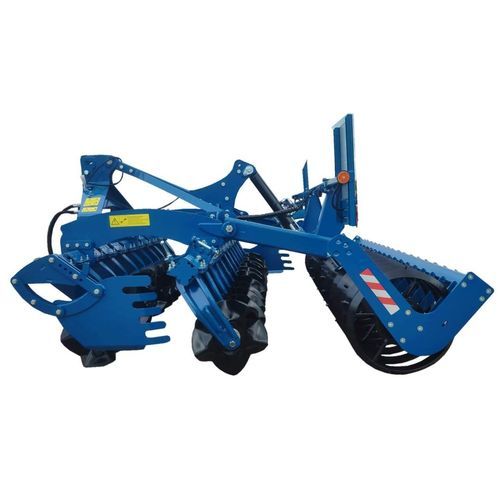

Mounted disc harrow X-Cross

semi-mountedtandemfolding

Standard equipment

• 3-point linkage cat. II and III in mounted version
• Drawbar with cat. III drawbar in semi-mounted version
• 2 rows of cross-cut discs 440 mm
• Distance between disc rows 90 cm
• Tubular shaft ø 500 mm
• Disc arms made of high-grade steel
• Hydraulic working depth adjustment on the roller
• Maintenance-free 4-hole hub
• Working depth 2-3 cm
• Height-adjustable side screens
• Disc protection by means of rubber buffers ø 40 mm
• Transport width less than 3.0m (except version 3.5m and 4.0m)
• Air brake as standard on 5m and 6m widths

Optional equipment

• Row of harrow springs mounted behind
• V-Ring-roller Ø 500mm
• V-Ring-roller Ø 600mm
• Tandem U-Ring Ø540mm
• Maintenance free hubs SKF
• Hydraulic brakes
• Pneumatic braking system
• Rear beam with LED lighting

Technical Specifications
REF.NO. | Working width [m] | Folding | Number of discs [pcs.] | POWER DEMAND [HP] | Weight [kg]
8551 | 3.0 | – | 24 | 110 | 1480
8552 | 3.5 | – | 28 | 130 | 1720
8553 | 4.0 | – | 32 | 150 | 2045
8553H | 4.0 H | Hydraulic | 32 | 150 | 2890
8554H | 4.5 H | Hydraulic | 36 | 160 | 3175
8553HVFR | 4.0 HP | Hydraulic + landing gear | 32 | 150 | 3900
8554HVFR | 4.5 HP | Hydraulic + landing gear | 36 | 160 | 4340
8555HVFR | 5.0 HP | Hydraulic + landing gear | 40 | 180 | 4780
8556HVFR | 6.0 HP | Hydraulic + landing gear | 48 | 200 | 5300
Product number
8551; 8552; 8553; 8554; 8555; 8556

Characteristics / Technical Specifications

• Product type: Disc harrow
• Model: X-Cross
• Categories: Disc harrows, Soil cultivation
• Working width: 3.0 m to 6.0 m (depending on version)
• Number of discs: 24 to 48 (depending on version)
• Power demand: 110 HP to 200 HP (depending on version)
• Weight: 1480 kg to 5300 kg (depending on version)
• Hydraulic folding and landing gear available on selected models
• Transport width: less than 3.0 m (except 3.5 m and 4.0 m versions)
• Air brake standard on 5 m and 6 m widths
