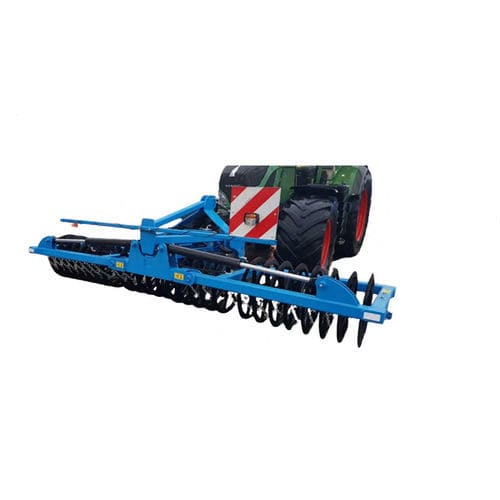

Cultivating roller 951 series

Cambridge3-point hitchtowed

Standard equipment

• 3-point linkage cat. II and III
• Support leg
• 2 cylinders
• Swivel bearings
• Campbell cast iron
• Hydraulically foldable

Optional equipment

• Mechanical spring levelling board
• Hydraulic spring harrow
• Front/rear attachment
• Cambridge cast Ø 530mm
• Cambridge cast Ø 600mm
• LED Lights

Product number

• 9512ON; 9510ON; 9511ON; 9513ON

Technical Specifications
Ref. | Working width [m] | Number of rings [pcs.] | Power demand [HP] | Weight [kg]
9512ON | 5.0 | 30 | 100 | 1980
9510ON | 6.0 | 38 | 130 | 2240
9511ON | 5.0 | 30 | 100 | 2140
9513ON | 6.0 | 38 | 130 | 2570

Characteristics / Technical Specifications

• Hydraulically foldable Campbell roller
• Available working widths: 5.0 m and 6.0 m
• Number of rings: 30 or 38 depending on model
• Power demand: 100 HP or 130 HP
• Weight: from 1980 kg to 2570 kg depending on model
• 3-point linkage cat. II and III
• Support leg and 2 cylinders included
• Swivel bearings and Campbell cast iron construction
• Optional mechanical spring levelling board and hydraulic spring harrow
• Optional Cambridge cast rollers (Ø 530mm or Ø 600mm)
• Optional LED lights
