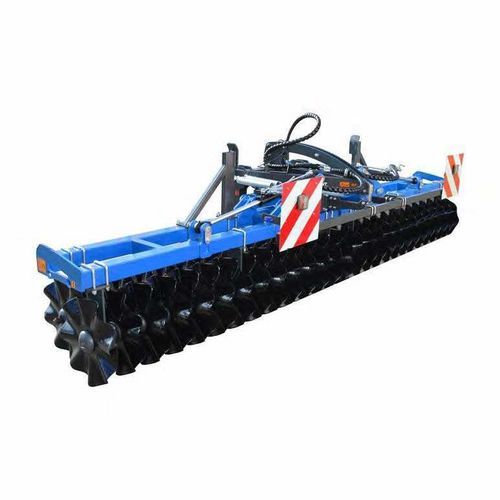

Cultivating roller 8503
front-mounted3-point hitch

Cultivating roller - 8503 - ZAGRODA INTERNATIONAL Sp. z o.o. - front-mounted / 3-point hitch
Cultivating roller - 8503 - ZAGRODA INTERNATIONAL Sp. z o.o. - front-mounted / 3-point hitch
Add to favorites
Compare this product
Go to the ZAGRODA INTERNATIONAL Sp. z o.o. website for more information

Characteristics

Function
cultivating
Other characteristic
3-point hitch, front-mounted

Description

Description
Ref no | Working width [m] | Number of discs [pcs.] | Weight [kg]
8503 | 4.0 | 43 | 1250
8504 | 4.5 | 48 | 1350
8505 | 5.0 | 54 | 1500
8506 | 6.0 | 64 | 1750


Standard equipment
  • 3-point linkage category II
  • Transport width less than 3.0 m
  • Two rows of wavy discs Ø 520 mm
  • Swivel suspension of the main frame
  • Two springs maintaining working position
  • Hydraulic folding for transport


Optional equipment
  • Front 1-row harrow with cultivator S-type tines 32×10 and straight double coulter
  • Front 1-row harrow with cultivator straight tines 32×10 and straight double coulter
  • Front 2-row harrow with cultivator S-type tines 32×10 and straight double coulter
  • Front 2-row harrow with cultivator straight tines 32×10 and straight double coulter
  • Front spring levelling board with 150 mm spring tines
  • Discs Ø 560 mm
  • Knife drag
  • Hydraulic adjustment of working depth for front harrow and spring levelling board (1 section)
  • LED lighting


Product number
8503-8506


Technical specifications
  • Ref 8503: Working width 4.0 m; Number of discs 43; Weight 1250 kg
  • Ref 8504: Working width 4.5 m; Number of discs 48; Weight 1350 kg
  • Ref 8505: Working width 5.0 m; Number of discs 54; Weight 1500 kg
  • Ref 8506: Working width 6.0 m; Number of discs 64; Weight 1750 kg
  • Two rows of wavy discs Ø 520 mm (standard)
  • Optional discs Ø 560 mm
  • 3-point linkage category II
  • Transport width: less than 3.0 m
  • Swivel suspension of the main frame
  • Two springs maintaining working position
  • Hydraulic folding for transport
  • Front harrow options: 1-row or 2-row, S-type or straight tines 32×10 with straight double coulter
  • Front spring levelling board with 150 mm spring tines (optional)
  • Hydraulic adjustment of working depth for front harrow and spring levelling board (1 section) (optional)
  • Knife drag (optional)
  • LED lighting (optional)
