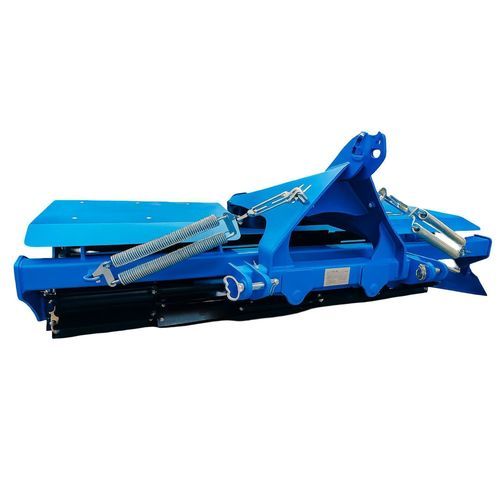

Knife roller AH series

cultivatingtandem3-point hitch

Standard equipment

• 3-point linkage
• Two rows of knife rollers
• Roller diameter Ø 380 mm
• Hydraulically foldable from 4.0 m up to 6.0 m

Optional equipment

• Spiral knives
• Weights 500 kg
• LED lights

Product number

• 1037AH; 1038AH; 1039AH; 1040AH; 1041AH; 1042AH; 1042HAH; 1043HAH; 1044HAH

Technical Specifications
Ref.No. | Working width [m] | Weight [kg]
1037AH | 1.5 | 510
1038AH | 2.0 | 585
1039AH | 2.5 | 720
1040AH | 3.0 | 850
1041AH | 3.5 | 975
1042AH | 4.0 | 1100
1042HAH | 4.0 | 1700
1043HAH | 5.0 | 1900
1044HAH | 6.0 | 2100

Characteristics / Technical Specifications

• 3-point linkage
• Two rows of knife rollers
• Roller diameter: 380 mm
• Hydraulically foldable (from 4.0 m up to 6.0 m)
• Optional spiral knives
• Optional weights: 500 kg
• Optional LED lights
• Multiple working widths and weights available (see table above)
