2 rows of toothed discs ø 560mm/610mm with discs rubber protection, row spacing 100cm, 2 side discs, tubular roller ø 500mm/600mm (or other rollers for extra charge), disc working depth up to 15cm3-point linkage cat. IIIMechanical adjustment of working depth on the rollerHydraulic folding to the transport positionMechanical transport safety lock (turnbuckle)Arms made of certificated steel with maintenance-free hubsSide screens with height adjustmentTransport width less than 3.0m
Optional equipment2 rows of toothed discs Ø 610mm, spacing between rows 100cm, edge discs Ø 560mm, tubular roller Ø 600mmHydraulic adjustment of working depthRow of harrow springs mounted at the front of rollerRow of harrow springs mounted at behind the tillage rollerTubular roller Ø 600mm for disc Ø 560mmTubular roller Ø 500mm – thick-walled pipe ø 48.3 x 6.3Tubular roller Ø 600mm – thick-walled pipe ø 48.3 x 6.3Packer roller Ø 500mm/Ø 600mmV-ring roller Ø 500 mm with scrapers/Ø 600 mm with scrapersFLEX roller Ø 500mm/ Ø 550mmRubber roller Ø 500mmT-ring roller Ø 500mm/Ø 600mmFlat bar roller Ø 500mm/ Ø 600mmToothed flat bar roller Ø 500mm/Ø 600mmPack ring roller Ø 600mmTandem roller (tubular Ø 500mm; flat bar Ø 300mm)Maintenance-free SKF hubsMechanical semi-automatic safety lock of the side wingsTrailed version: transport chassis with wheels 400-60-15.5 drawbar with hitch cross shaft cat. III, two front wheels 10.0/80/-12Hydraulic brakesPneumatic braking system – dual-circuitFront supporting wheelsHydraulic adjustment of drawbar heightWheel chocksWarning plates with LED lights
Product number8523N; 8523Na; 8524N; 8524Na; 8525N; 8525Na; 8526N; 8526Na
Technical SpecificationsRef.No. | Working width [m] | Disc diameter [mm] | Number of discs [pcs.] | Power demand [HP] | Weight [kg]8523N | 4.0 | 560 | 32 | 130-160 | 31228523Na | 4.0 | 610 | 32 | 130-160 | 32408524N | 4.5 | 560 | 36 | 150-180 | 34018524Na | 4.5 | 610 | 36 | 150-180 | 35368525N | 5.0 | 560 | 40 | 160-190 | 37048525Na | 5.0 | 610 | 40 | 160-190 | 38568526N | 6.0 | 560 | 48 | 170-210 | 42308526Na | 6.0 | 610 | 48 | 170-210 | 4416

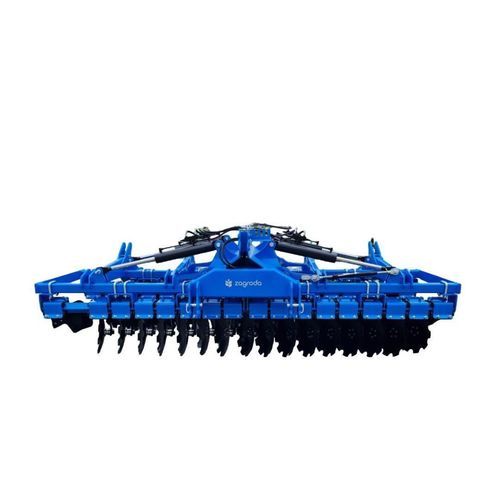

Characteristics / Technical SpecificationsMounted disc harrow with rubber disc protectionHydraulic foldingAvailable working widths: 4.0m, 4.5m, 5.0m, 6.0mDisc diameters: 560mm or 610mmNumber of discs: 32, 36, 40, 48 (depending on model)Power demand: 130-210 HP (depending on model)Weight: 3122-4416 kg (depending on model)3-point linkage cat. IIIMechanical and hydraulic adjustment optionsTransport width less than 3.0mOptional trailed version and various roller types
