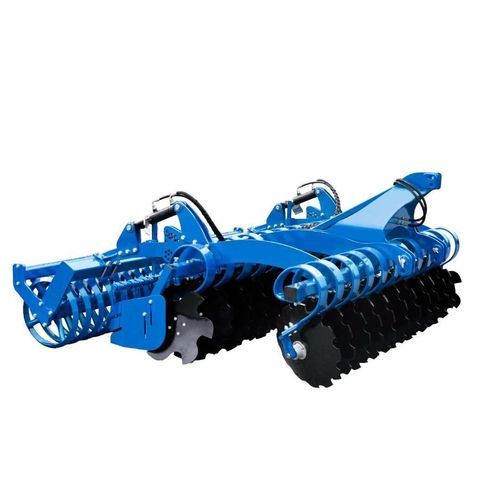

Mounted disc harrow 8521ZS

depth controlfolding3-point hitch

Standard equipment:

• 3-point linkage
• 2 disc rows ø 560mm on leaf springs 100x13x10mm
• Row spacing 70cm fixed version or 90cm folding version
• Sealed bearings
• Mechanical working depth adjustment
• Side screens
• Tubular roller ø 460mm
• Hydraulic folding in 2 parts from 4m

Optional equipment:

• V-ring roller Ø600 mm with scrapers and paddles
• V ring roller Ø 600mm with scrapers
• V-ring roller Ø500 mm with scrapers and paddles
• V ring roller Ø 500mm with scrapers
• FLEX roller Ø 470mm
• FLEX roller Ø 550mm
• Row of harrow springs mounted in front of the roller Ø10mm
• Rubber roller Ø360mm
• Packer roller Ø 400mm
• Toothed pack ring roller Ø 600mm
• Tandem U ring roller Ø500mm
• U ring roller Ø500mm
• U ring roller Ø600mm
• Hydraulic adjustment of working depth (on the roller)
• Discs Ø 610mm
• Discs spacing 90cm
• Lights

Technical Specifications:
Ref.No | Working width [m] | Number of discs [pcs.] | Power demand [HP] | Weight [kg]
8521ZS | 3.0 | 24 | 80 | 1100
8522ZS | 3.5 | 28 | 100 | 1200
8523ZS | 4.0 H | 32 | 120 | 2900
8524ZS | 4.5 H | 36 | 130 | 3300
8525ZS | 5.0 H | 40 | 140 | 3600
8526ZS | 6.0 H | 48 | 170 | 4200

• Category: SOIL CULTIVATION

Characteristics / Technical Specifications:

• Mounted disc harrow with leaf spring disc protection
• Standard and optional equipment as listed above
• Multiple working widths and configurations available
• Power demand ranges from 80 to 170 HP depending on model
• Weight ranges from 1100 kg to 4200 kg depending on model
