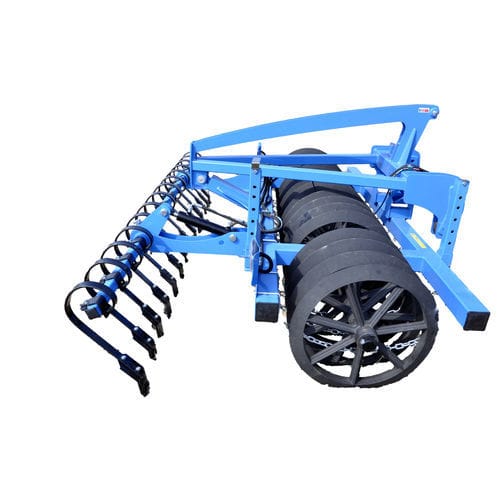

Cultivating roller 9015ON

front-mounted3-point hitchrear-mounted

Standard equipment

• 3-point linkage cat. II and III
• Support foot
• Suspended
• Campbell cast iron rings ø 700 mm, cutting angle 30° or 45°

Optional equipment

• Hydraulic levelling spring tine harrow
• Mechanical levelling spring tine harrow
• Front and rear suspension
• Warning sign with dynamic LED lighting

Product number

• 9015ON; 9019ON; 9016ON; 9020ON; 9325ON; 9326ON

Technical Specifications
Campbell Ø 700mm, 30°
Ref.No. | Working width [m] | Number of rings [pcs.] | Power demand [HP] | Weight [kg]
9015ON | 3.0 | 18 | 60 | 1020
9016ON | 3.4 | 22 | 70 | 1100
9325ON | 4.0 | 26 | 80 | 1250

Campbell Ø 700mm, 45°
Ref.No. | Working width [m] | Number of rings [pcs.] | Power demand [HP] | Weight [kg]
9019ON | 3.0 | 19 | 60 | 1325
9020ON | 3.4 | 22 | 70 | 1240
9326ON | 4.0 | 26 | 80 | 1510

Characteristics / Technical Specifications

• One-part Campbell roller for front or front & rear mounting
• Available with Campbell cast iron rings, diameter 700 mm
• Cutting angle options: 30° or 45°
• 3-point linkage compatible with category II and III
• Support foot and suspension included as standard
• Optional hydraulic or mechanical levelling spring tine harrow
• Optional front and rear suspension
• Optional warning sign with dynamic LED lighting
• Multiple reference numbers for different configurations
• Working widths: 3.0 m, 3.4 m, 4.0 m
• Number of rings: 18–26 pcs
• Power demand: 60–80 HP
• Weight: 1020–1510 kg depending on configuration
