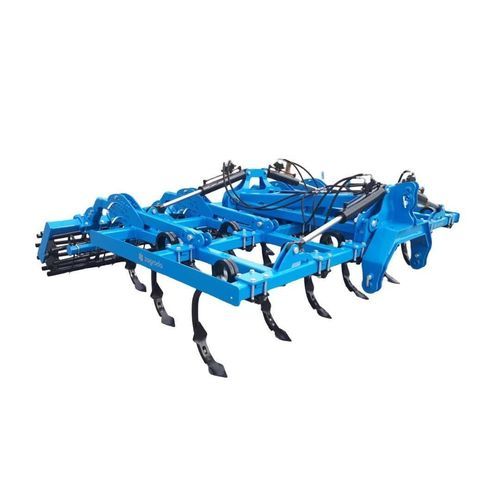

Mounted field cultivator 849 series

3-point hitchwith roller

Standard equipment

• 3-point hitch cat. III
• 3 rows of 35×35 mm spiral tines with doublecutter
• Working depth to 15cm
• Transport width up to 3,0m

Optional equipment

• Tubular roller Ø 600mm
• V-ring roller Ø 600mm with scrapers
• Packer roller Ø 500mm
• Smooth flat iron roller Ø500mm
• Fusion roller Ø 600mm
• Comb harrow in front of the roller
• Crow’s foot ploughshare
• Warning signs with LED lighting

Product number

• 8493TS; 8494TS; 8495TS

Technical Specifications
Ref.No. | Working width [m] | Number of discs [pcs.] | Power demand [HP] | Weight [kg]
8493TS | 3,0 | 13 | 100-130 | 1276
8494TS | 4,0 | 17 | 130-150 | 2215
8495TS | 5,0 | 21 | 160-210 | 2568

Characteristics / Technical Specifications

• 3-point hitch category III
• 3 rows of spiral tines (35×35 mm) with doublecutter
• Working depth up to 15 cm
• Transport width up to 3.0 m
• Optional rollers: Tubular, V-ring with scrapers, Packer, Smooth flat iron, Fusion (various diameters)
• Optional comb harrow in front of roller
• Optional crow’s foot ploughshare
• Optional warning signs with LED lighting
• Available in three models: 8493TS (3.0 m, 13 discs, 100-130 HP, 1276 kg), 8494TS (4.0 m, 17 discs, 130-150 HP, 2215 kg), 8495TS (5.0 m, 21 discs, 160-210 HP, 2568 kg)
