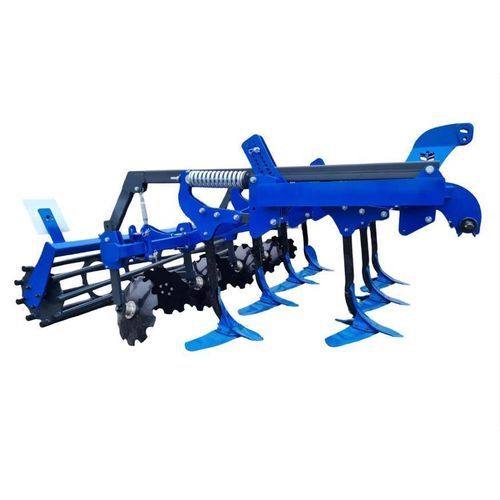

Mounted stubble cultivator 8332RX

The RX Stubble 2 row cultivator is a robust agricultural implement designed for efficient soil cultivation and stubble management. It features two rows of Lemken-type tines with wings, ensuring effective soil penetration and mixing. The cultivator is equipped with NON STOP protection for tines and spring bolts, enhancing durability and operational safety. The tine disc row has a diameter of 460 mm, and users can choose between tubular, flat smooth, or flat toothed rollers with a diameter of 500 mm for optimal soil finishing.

Standard equipment

• Cat II and III 3-point hitch
• 2 rows of Lemken-type tines with wings
• NON STOP protection of tines and spring bolts
• Tine disc row ø 460 mm
• Tubular or flat smooth or flat toothed roller ø 500mm

Optional equipment

• Fusion roller ø 600 mm
• V-Ring roller ø 500mm/ ø 600 mm
• Tubular roller ø 600 mm
• Smooth flat roller ø 600mm
• U-Ring roller ø 500mm
• T-Ring roller ø 500mm
• LED lights

Product numbers

• 8332RX
• 8332ARX
• 8333RX
• 8333ARX

Technical specifications

• Ref. No.: 8332RX, 8332ARX, 8333RX, 8333ARX
• Working width [m]: 2.6 (8332RX, 8332ARX), 3.0 (8333RX, 8333ARX)
• Protection: Bolt (8332RX, 8333RX), Spring (8332ARX, 8333ARX)
• Number of tines [pcs.]: 6 (2.6 m), 7 (3.0 m)
• Number of disks [pcs.]: 7 (2.6 m), 8 (3.0 m)
• Power demand [HP]: 90-110 (2.6 m), 120-140 (3.0 m)
• Weight [kg]: 940 (2.6 m), 1020 (3.0 m)
