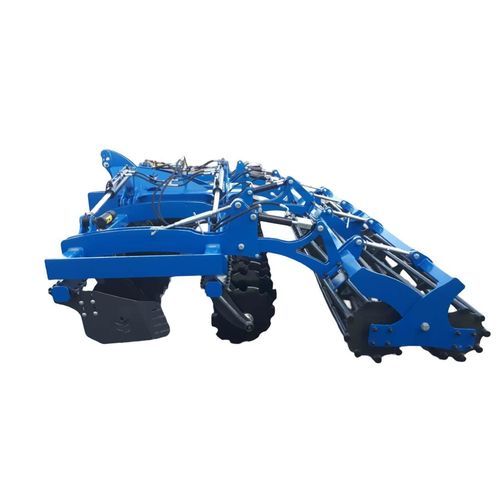

Mounted disc harrow 852 series

with hydraulic adjustmentfolding

The Mounted disc harrow RX with rubber disc protection and hydraulic folding (trailed option) is a robust agricultural implement designed for efficient soil cultivation. It features two rows of 560 mm diameter discs with rubber protection, ensuring durability and effective operation in various field conditions. The harrow is equipped with a tube or flat bar roller (ø 500 mm), side panes, and a 100 cm distance between pane rows. Discs are mounted on a 90/90/6 mm carrier and utilize a maintenance-free hub for reduced upkeep.

Standard equipment

• Two rows of discs, diameter 560 mm
• Rubber protection
• Tube or flat bar roller ø 500 mm
• Side panes
• Distance between the pane rows 100 cm
• Discs mounted on a 90/90/6 mm carrier
• Maintenance-free hub

Optional equipment

• Fusion roller 600 mm
• Crosskill roller 500 mm
• Packer roller 500 or 600 mm
• Packer roller 500 or 600 mm (scraper)
• Pipe roller, 600 mm strand
• Flex roller 500 mm (scraper)
• T-ring roller 500 mm
• U-ring roller 500 or 600 mm
• Rubber roller 500 mm
• 610 mm discs only with maintenance-free hub
• Hydraulic adjustment of the rear roller
• Scraper
• Lighting system
• Chassis, 1-axle, 2 wheels with 400 mm diameter, drawbar
• Wheels with 500 mm diameter
• Hydraulic brake (thanks to the extended disk base)
• Air brake
• Support wheels

Product numbers

• 8523RX
• 8524RX
• 8525RX
• 8526RX

Technical specifications

• Ref. No: 8523RX, 8524RX, 8525RX, 8526RX
• Working width [m]: 4.0 / 4.5 / 5.0 / 6.0
• Disc diameter [mm]: 560
• Row spacing [mm]: 1000
• Number of disks [pcs.]: 32 / 36 / 40 / 48
• Power demand [HP]: 130-150 / 150-180 / 160-200 / 180-250
• Weight [kg]: 3050 / 3500 / 3850 / 4650
