3-shank subsoiler 8291
3-point hitchfixed

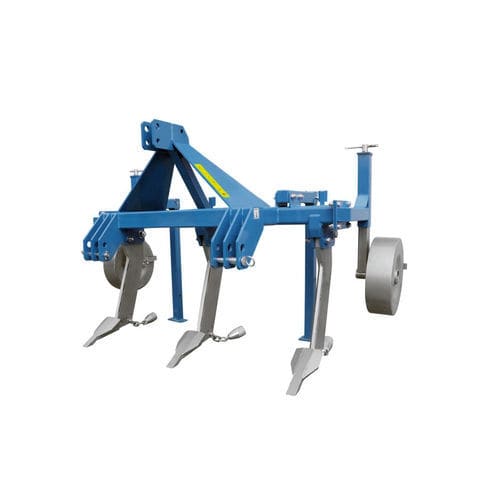

3-shank subsoiler - 8291 - ZAGRODA INTERNATIONAL Sp. z o.o. - 3-point hitch / fixed
3-shank subsoiler - 8291 - ZAGRODA INTERNATIONAL Sp. z o.o. - 3-point hitch / fixed
3-shank subsoiler - 8291 - ZAGRODA INTERNATIONAL Sp. z o.o. - 3-point hitch / fixed - image - 2
3-shank subsoiler - 8291 - ZAGRODA INTERNATIONAL Sp. z o.o. - 3-point hitch / fixed - image - 3
3-shank subsoiler - 8291 - ZAGRODA INTERNATIONAL Sp. z o.o. - 3-point hitch / fixed - image - 4
Add to favorites
Compare this product
Go to the ZAGRODA INTERNATIONAL Sp. z o.o. website for more information

Characteristics

Number of shanks
3-shank
Other characteristic
3-point hitch, fixed
Width

1.9 m, 2.3 m, 3 m
(6'02" , 7'06" , 9'10" )

Working depth

45 cm
(17.7 in)

Description

Standard equipment
  • 3-point linkage cat. II and III
  • Working depth up to 45cm
  • Clearance under the frame: 79cm, space between tines 75cm (subsoiler with 2 tines has space 150cm between tines)
  • Tine thickness: 30mm with hardened front surface
  • Tempered replaceable points
  • Drainage cone mounted to the tines with the chain
  • Shear bolt protection
  • Supporting leg
  • Color: green

Optional equipment
  • Two supporting metal wheels, enable mechanical working depth adjustment
  • Row of harrow springs

Product number
  • 8291; 8292; 8293; 8294

Technical Specifications
Ref.No. | Working width [m] | Number of tines [pcs.] | Power demand [HP] | Weight [kg]
8291 | 1.9 | 1 | 32 | 290
8292 | 2.3 | 2 | 64 | 375
8293 | 2.3 | 3 | 96 | 425
8294 | 3.0 | 4 | 128 | 500

Characteristics / Technical Specifications
  • 3-point linkage cat. II and III
  • Working depth up to 45cm
  • Clearance under the frame: 79cm
  • Space between tines: 75cm (150cm for 2-tine version)
  • Tine thickness: 30mm, hardened front surface
  • Tempered replaceable points
  • Drainage cone with chain
  • Shear bolt protection
  • Supporting leg
  • Color: green
  • Optional: supporting metal wheels, harrow springs
  • Ref. numbers: 8291, 8292, 8293, 8294
  • Working widths: 1.9m, 2.3m, 3.0m
  • Number of tines: 1, 2, 3, 4
  • Power demand: 32-128 HP
  • Weight: 290-500 kg
