4-shank subsoiler 8289
6-shankwith hydraulic adjustment3-point hitch

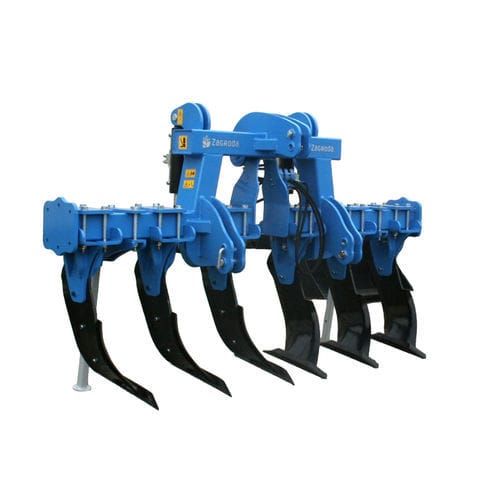

4-shank subsoiler - 8289 - ZAGRODA INTERNATIONAL Sp. z o.o. - 6-shank / with hydraulic adjustment / 3-point hitch
4-shank subsoiler - 8289 - ZAGRODA INTERNATIONAL Sp. z o.o. - 6-shank / with hydraulic adjustment / 3-point hitch
4-shank subsoiler - 8289 - ZAGRODA INTERNATIONAL Sp. z o.o. - 6-shank / with hydraulic adjustment / 3-point hitch - image - 2
4-shank subsoiler - 8289 - ZAGRODA INTERNATIONAL Sp. z o.o. - 6-shank / with hydraulic adjustment / 3-point hitch - image - 3
4-shank subsoiler - 8289 - ZAGRODA INTERNATIONAL Sp. z o.o. - 6-shank / with hydraulic adjustment / 3-point hitch - image - 4
4-shank subsoiler - 8289 - ZAGRODA INTERNATIONAL Sp. z o.o. - 6-shank / with hydraulic adjustment / 3-point hitch - image - 5
Add to favorites
Compare this product
Go to the ZAGRODA INTERNATIONAL Sp. z o.o. website for more information

Characteristics

Number of shanks
4-shank, 6-shank
Other characteristic
3-point hitch, with hydraulic adjustment
Width

3 m, 4 m
(9'10" , 13'01" )

Working depth

45 cm
(17.7 in)

Description

Standard equipment
  • Front 3-point linkage cat. III
  • Working depth up to 45cm
  • Frame with rear 3-linkage cat. II or III with hydraulic height adjustment for coupling subsoiler with other machines
  • Clearance under the frame 90cm
  • Michel type tines
  • Shear bolt protection

Optional equipment
  • 2 sets of supporting wheels /2x2pcs/ for width 3,0m 175/65/r14
  • 2 sets of supporting wheels /2x2pcs/ for width 4,0m – 10,0-80/12

Product number
  • 8289; 8290; 8295

Technical Specifications
Ref.No. | Working width [m] | Number of tines [pcs.] | Power demand [HP] | Weight [kg]
8289 | 3.0 | 4 | 130-150 | 950
8290 | 3.0 | 6 | 150-170 | 1100
8295 | 4.0 | 8 | 160-190 | 1350

Characteristics / Technical Specifications
  • Front 3-point linkage cat. III
  • Working depth up to 45cm
  • Frame with rear 3-linkage cat. II or III with hydraulic height adjustment
  • Clearance under the frame: 90cm
  • Michel type tines
  • Shear bolt protection
  • Optional supporting wheels for 3.0m and 4.0m widths
  • Available in three models: 8289 (3.0m, 4 tines, 130-150 HP, 950kg), 8290 (3.0m, 6 tines, 150-170 HP, 1100kg), 8295 (4.0m, 8 tines, 160-190 HP, 1350kg)
