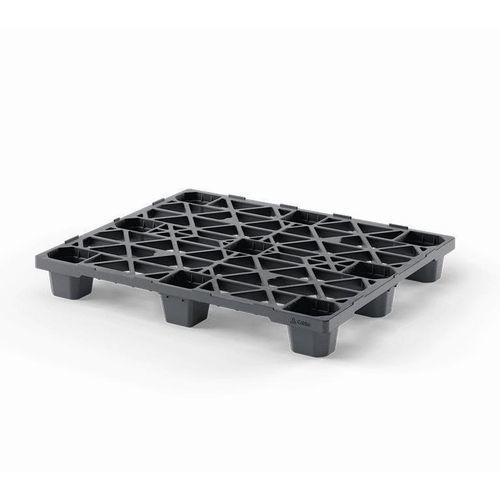

Plastic pallet Nest i5 (OD-9F)

transport4-way entryrecyclable

The Nest i5 is a nestable export plastic pallet in industrial size (1200 x 1000 mm) designed for medium loads. It features a T-profile deck, rounded corners, is reusable, made of recycled plastic and is 100% recyclable.

Available versions

• OD-9F — bottom support: 9feet; dimensions: 1200 x 1000 x 140 mm
• OD-3R — bottom support: 3run; dimensions: 1200 x 1000 x 150 mm

Key features

• Nestable export pallet for medium loads
• Strong T-profile deck
• Rounded corners
• Reusable — made of recycled plastic; 100% recyclable
• Upper deck: open
• 4-way entry

Technical specifications

• Product name: Nest i5 (OD-9F / OD-3R)
• Entry: 4-way
• Nesting height: not specified
• Safety rim: 5.5 mm
• Bottom support: OD-9F = 9feet; OD-3R = 3run
• Upper deck: open
• Dimensions (mm): OD-9F = 1200 x 1000 x 140; OD-3R = 1200 x 1000 x 150
• Load capacity (static): OD-9F = 3000 kg; OD-3R = 3500 kg
• Load capacity (dynamic): OD-9F = 1400 kg; OD-3R = 2000 kg
• Racking capacity: OD-9F = - ; OD-3R = 300 kg
• Weight (PE mix): OD-9F = 9.5 kg; OD-3R = 12.5 kg
• Weight (PP mix): OD-9F = 10.5 kg; OD-3R = 14.0 kg
• Material / sustainability: made of recycled plastic; reusable; 100% recyclable
