Plastic pallet Nest S5 (CD-3R)

polyethylenetransportstorage

Overview

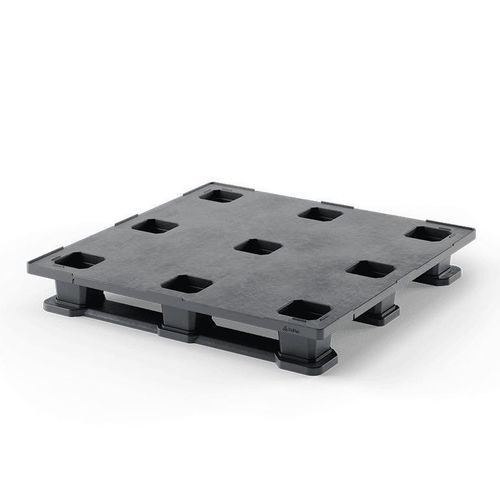

The Nest S5 (CD-3R) is a rackable 1200x1200 mm plastic pallet designed for industrial logistics. It combines a closed top deck and three runners to ensure stable block stacking and reliable conveyor operation while supporting sustainable reuse and recycling practices.

Key features

• Rackable design with three runners (CD-3R) for conveyor compatibility and improved block stack stability.
• Closed top deck to protect loads from pressure points and ground contamination.
• 4-way entry for flexible handling with forklifts and pallet trucks.
• Rounded edges to simplify manual handling and increase safety.
• Manufactured from recycled plastic and fully recyclable.
• Accommodates up to six 600×400 mm modular units per layer for efficient palletization.

Applications / Benefits

• Optimized for automated and manual logistics processes requiring conveyor compatibility and stable block stacking.
• Suitable for hygienic environments or operations where protection against ground contamination is required.

Technical specifications

• Product name: Nest S5 (CD-3R)
• Model / series: Nest S5
• Entry: 4-way
• Bottom support: 3 runners (3run)
• Upper deck: closed
• Safety rim: 8.5 mm
• Dimensions (mm): 1200 x 1200 x 163
• Nesting height: - mm (not specified)
• Static load capacity: 6000 kg
• Dynamic load capacity: 1850 kg
• Racking capacity: 300 kg
• Weight (PP MIX): 18.0 kg
• Modular units: up to six 600×400 mm units per layer
